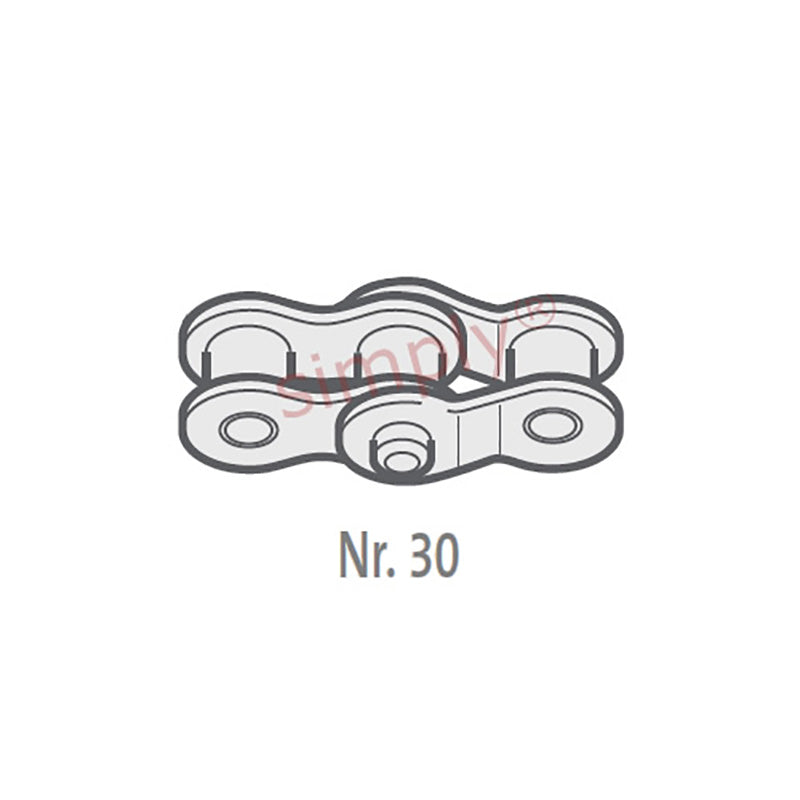

Renold SYNO 20B-1-NO30 BS Simplex Chain Double Cranked Link 1-1/4 inch Pitch
£98.50
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 2+ | £87.67 each |
| 5+ | £82.74 each |
| 10+ | £81.76 each |
| 29+ | £80.77 each |
| 49+ | £79.79 each |
| 75+ | £78.80 each |
| 100+ | £73.88 each |
| 200+ | £72.89 each |
| 250+ | £71.91 each |
| 500+ | £70.92 each |
| 1000+ | £68.95 each |
In Stock
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H1) | = | 39.8mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| ISO606 Tensile Strength min | = | 95000 N |
| Weight | = | 0.04kg/m |
