SKU: S-UCFC207D1-NTN

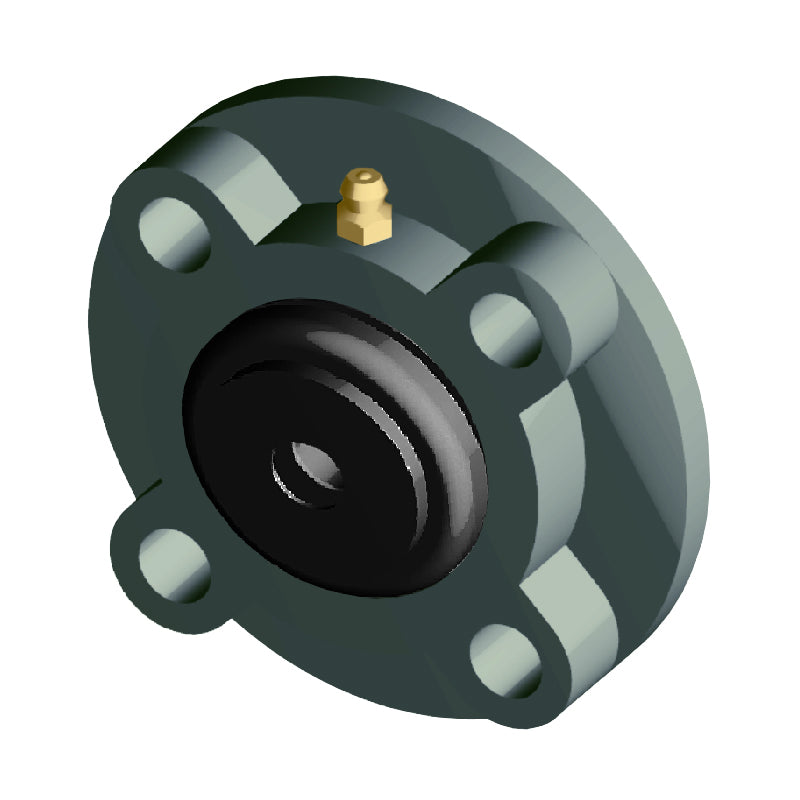

NTN S-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
£55.34
ex VAT£66.41inc. VAT
Regular price
Sale price
£55.34
ex VAT£66.41
inc. VAT
In stock
Price Break
3+
£54.79
4+
£52.57
9+
£51.47
19+
£49.81
49+
£48.70
99+
£45.93
499+
£38.74
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 77.8mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| L | 135mm |
| J | 110mm |
| (J<sub>1</sub>) | 77.8mm |
| A<sub>2</sub> | 11mm |
| N | 14mm |
| A<sub>3</sub> | 8mm |
| A<sub>1</sub> | 26mm |
| A | 34mm |
| H<sub>3</sub> | 90mm |
| B | 42.9mm |
| S | 17.5mm |
| A<sub>4</sub> | 55mm |
| Fixing bolt | M12 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 28.4 kN |
| Static load C<sub>0r</sub> | 15.3 kN |
| Fatigue load limit C<sub>u</sub> | 1.09 kN |
| --- | Unit information |
| Mass | 1.7 kg |
