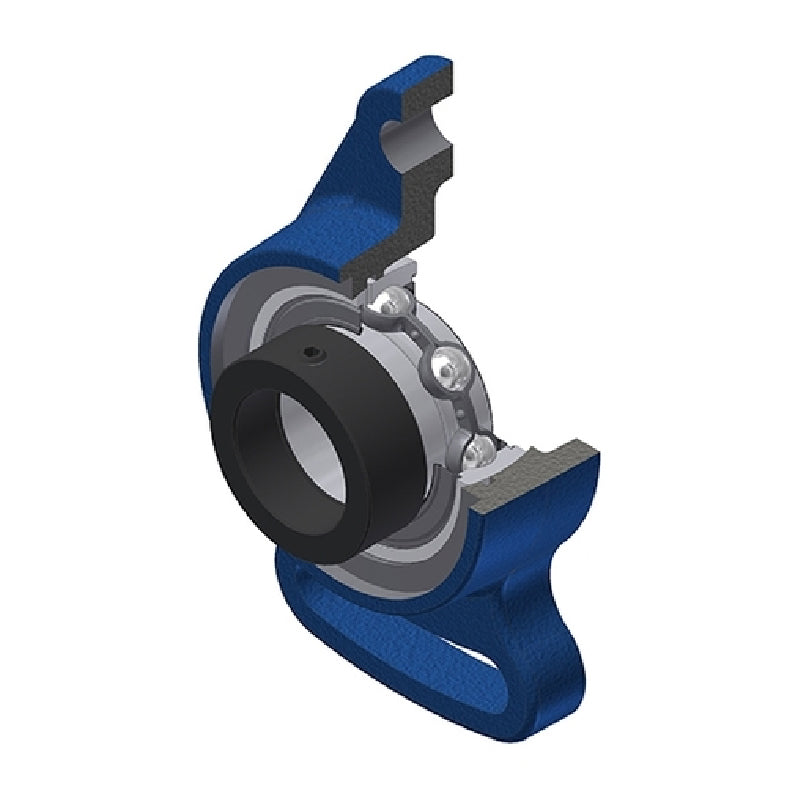

SNR ESFA212N Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
£99.77
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £98.77 each |
| 10+ | £94.78 each |
| 20+ | £92.79 each |
| 50+ | £89.79 each |
| 100+ | £87.80 each |
| 500+ | £82.81 each |
| 1000+ | £69.84 each |
2-3 Days Availability
| Dimensions | ||
| Shaft diameter d | = | 60mm |
| A | = | 48mm |
| A1 | = | 20mm |
| A2 | = | 66.3mm |
| B | = | 33.4mm |
| B1 | = | 49.3mm |
| d1 | = | 82mm |
| e | = | 29mm |
| H | = | 250mm |
| J | = | 202mm |
| J1 | = | 92mm |
| L | = | 140mm |
| L1 | = | 118mm |
| N | = | 23mm |
| S | = | 12mm |
| G | = | M6x1 |
| Load rating | ||
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| Unit information | ||
| Operating temperature min. | = | -20°C |
| Operating temperature max. | = | 100°C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.9 kg |
