SKU: CUC206-18-SNR

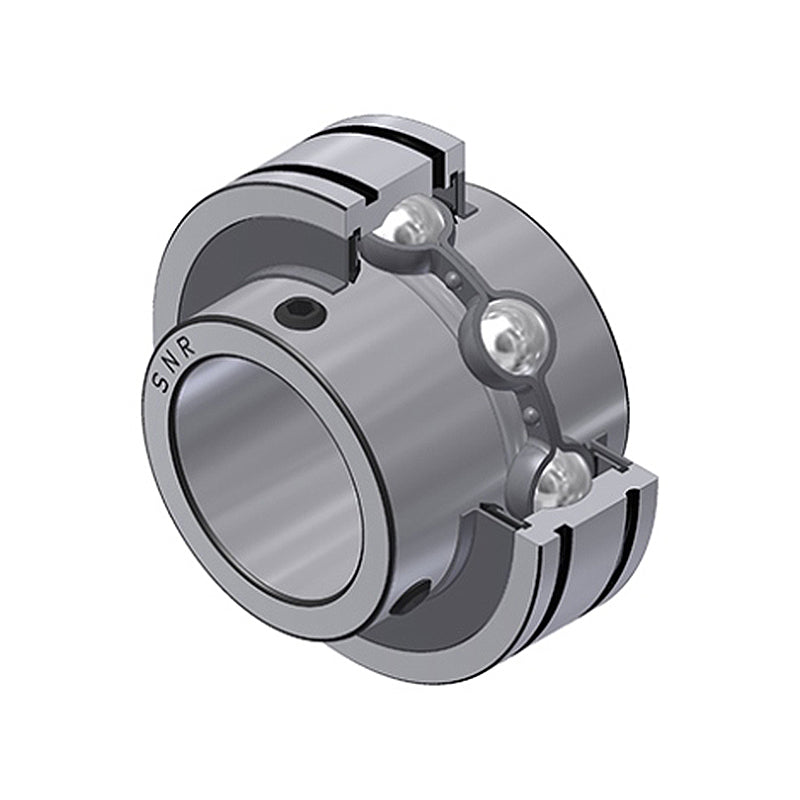

SNR CUC206-18 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter with Grub Screws - Allow 2-3 Days
SNR CUC206-18 Imperial Full Width Grooved Parallel Outer Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter with Grub Screws - Allow 2-3 Days
Regular price
£17.71
ex VAT£21.25inc. VAT
Regular price
Sale price
£17.71
ex VAT£21.25
inc. VAT
In stock
Price Break
3+
£17.53
5+
£16.82
9+
£16.47
19+
£15.94
49+
£15.58
74+
£14.70
99+
£12.40
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
SNR CUC Full Width Parallel Outer Bearing Insert with Grub Screws: This bearing insert is tailored for applications requiring axial fixation and lubrication capabilities, not suitable for standard housings with spherical bearing seats. It includes a cylindrical outer ring with a snap ring groove and lubrication hole. Each steel insert is equipped with a single lip seal and slinger on both sides, featuring a wide inner ring design for enhanced stability and performance.
Benefits: High-quality brand, high-performance, precision-engineered
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 1/4-28UNF
- Inside Diameter:
- 28.575mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 62mm
- Width:
- 38.1mm
- Style:
- CUC
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| d | 28.575mm |
| D | 62mm |
| C | 19mm |
| B | 38.1mm |
| S | 15.9mm |
| a | 3.2mm |
| b | 1.9mm |
| N1 | 59.61mm |
| m | 5.5mm |
| C1 | 4mm |
| r min | 0.6mm |
| G | 1/4-28UNF |
| Wrench Size | 1/8 inch |
| Set screw torque | 3.7 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 19.5kN |
| Static load rating C0 | 11.2kN |
| Weight | 0.3kg |
