SKU: US204-12G2-SNR

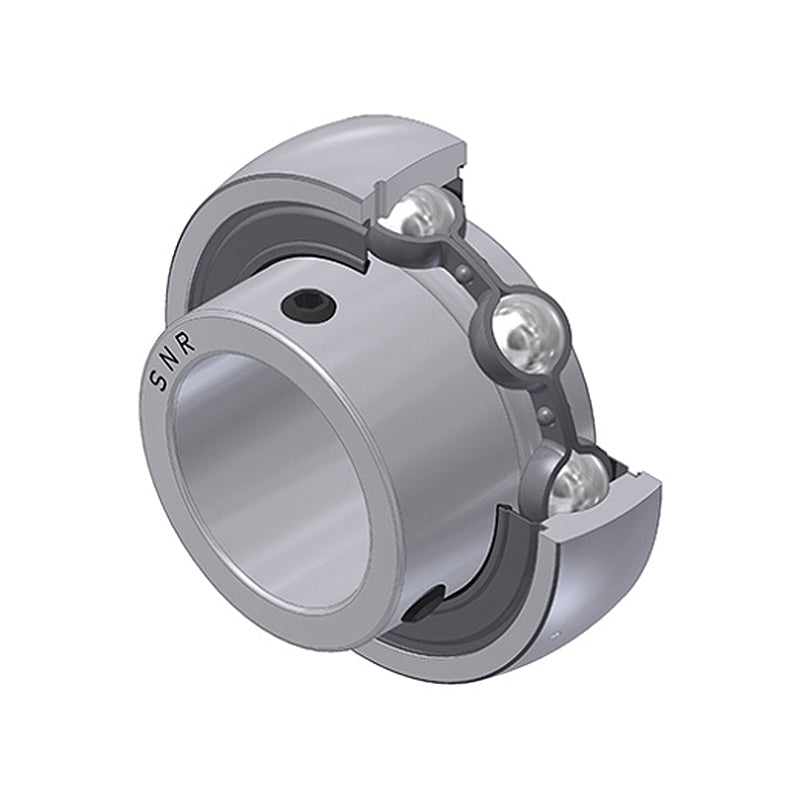

SNR US204-12G2 Imperial Flatback Spherical Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Grub Screws
Equivalent to: SB204-12
In stock
Price Break
Description
SNR US Flatback Spherical Outer Bearing Insert with Grub Screws: This bearing insert is crafted as a standard version, offering dependable performance across various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It incorporates a zinc-coated sheet steel retainer with a vulcanized seal, where the axially preloaded seal lip is made from NBR and positioned behind a protective edge. Designed for normal environmental conditions, this insert supports medium to high rotation speeds, ensuring consistent performance in demanding settings.
Benefits: High-quality brand, high-performance, precision-engineered
Equivalent: SB204-12
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 1/4-28UNF
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Width:
- 25mm
- Style:
- US
Technical
| d | 3/4 inch |
|---|---|
| d | 19.05mm |
| D | 47mm |
| C | 14mm |
| B | 25mm |
| S | 7mm |
| m | 5mm |
| C1 | 4mm |
| r min | 0.6mm |
| G | 1/4-28UNF |
| Wrench Size | 1/8 inch |
| Set screw torque | 3.7 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 12.8kN |
| Static load rating C0 | 6.7kN |
| Weight | 0.1kg |
