SKU: QRFF-08-HQ10-MB

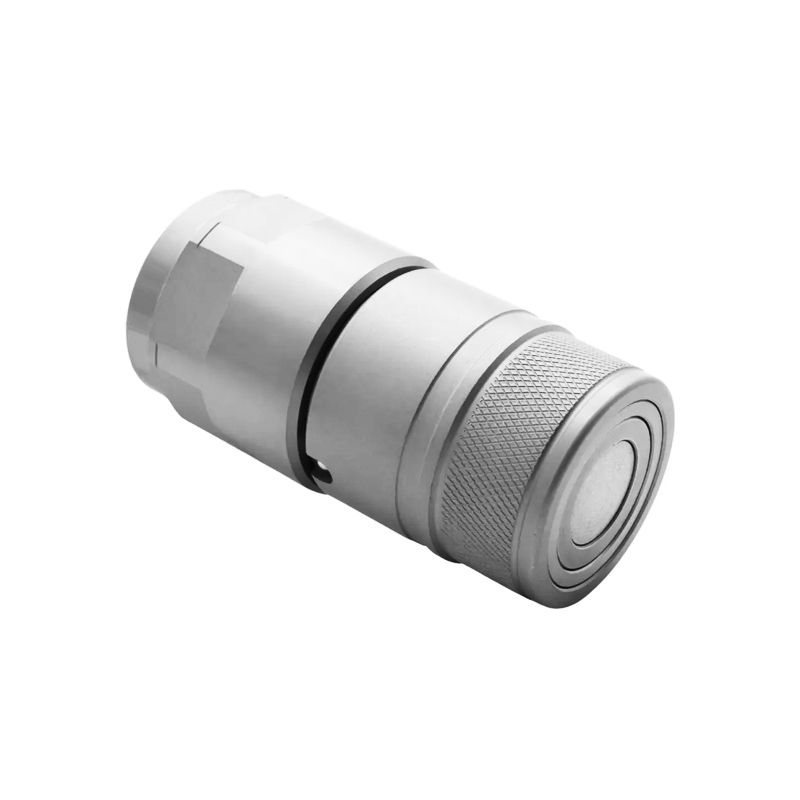

1/2 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
1/2 inch BSP Female Flat Face Quick Release Coupling - Allow 2-3 Days
Regular price
£22.44
ex VAT£26.93inc. VAT
Regular price
Sale price
£22.44
ex VAT£26.93
inc. VAT
In stock
Price Break
10+
£19.97
19+
£18.85
29+
£18.63
39+
£18.40
49+
£18.18
74+
£17.95
99+
£16.83
199+
£16.61
249+
£16.38
499+
£16.16
999+
£15.71
Couldn't load pickup availability
Description
Description
BSP Female Flat Face Quick Release Coupling: These couplings offer leak-free performance in high-pressure and hammer circuit applications. Made from durable carbon steel with zinc-nickel plating, these couplings resist corrosion and ensure longevity. Their flat-face design minimises air and contaminant inclusion while preventing fluid loss during disconnection. A safety locking sleeve prevents accidental disconnection and they also allow bidirectional flow, making them ideal for industrial, construction, and agricultural uses.
Benefits: Durable, safe and convenient, leak-free performance.
- Brand / Quality:
- Simply Quick Release Couplings - High Quality
- Thread Size:
- 1/2 inch BSP
- Length:
- 74mm
- Max Working Pressure:
- 375 bar
Technical
Technical
| Thread Size | 1/2 inch |
|---|---|
| Body Size (D1) | 32mm |
| Total Length (F) | 74mm |
| Nut Size (I) | 30mm |
| Maximum Working Pressure | 375 bar |
| Coupled Burst Pressure | 1200 bar |
| Female Burst Pressure | 1050 bar |
| Rated Flow | 23 lpm |
| Material | Zinc-Nickel Coated Steel |
| Weight | 0.315 kg |
