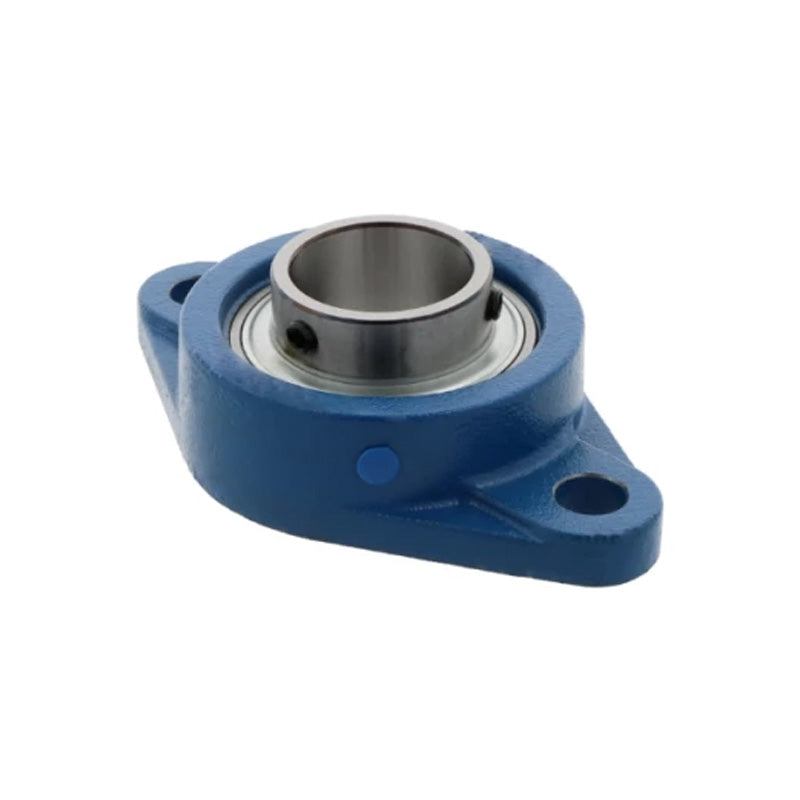

UCFL202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert
Equivalent to: SFT15
£10.11
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £9.10 each |
| 4+ | £8.59 each |
| 9+ | £8.09 each |
| 19+ | £7.58 each |
| 49+ | £7.08 each |
| 99+ | £6.57 each |
| 499+ | £6.07 each |
| 999+ | £5.06 each |
| 1999+ | £4.85 each |
| 2999+ | £4.75 each |
| 4999+ | £4.55 each |
In Stock
| d | = | 15mm |
| a | = | 113mm |
| e | = | 90mm |
| i | = | 15mm |
| g | = | 11mm |
| L | = | 25.5mm |
| S | = | 12mm |
| b | = | 60mm |
| z | = | 33.3mm |
| B1 | = | 31.0mm |
| n | = | 12.7mm |
| Bolt Size | = | M10 |
| Weight | = | 0.49 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
| Rec max speed | = | 8800 rpm |
