SKU: SSUCFL.205-14

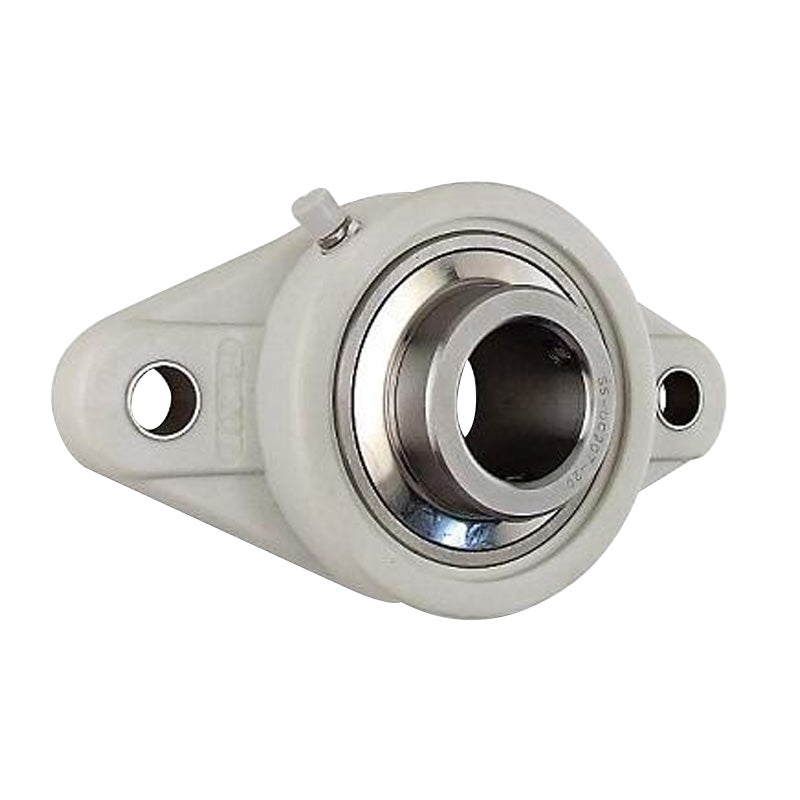

SSUCFL205-14 Imperial Two Bolt Oval Stainless Steel Flange Housing with 7/8 inch Bore Stainless Insert
SSUCFL205-14 Imperial Two Bolt Oval Stainless Steel Flange Housing with 7/8 inch Bore Stainless Insert
Regular price
£40.58
ex VAT£48.70inc. VAT
Regular price
Sale price
£40.58
ex VAT£48.70
inc. VAT
Equivalent to: SFT7/8
In stock
Price Break
3+
£36.11
4+
£34.08
9+
£33.68
19+
£33.27
49+
£32.87
99+
£32.46
499+
£30.43
999+
£30.03
1999+
£29.62
2999+
£29.21
4999+
£28.40
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: SFT7/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- SSUCFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| a | 130mm |
| e | 99mm |
| i | 16mm |
| g | 13mm |
| L | 27mm |
| S | 16mm |
| b | 68mm |
| Z | 35.7mm |
| Bi | 34mm |
| n | 14.3mm |
| Bolt | 14mm |
| Weight | 0.63 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
