SKU: NA6906R-NTN

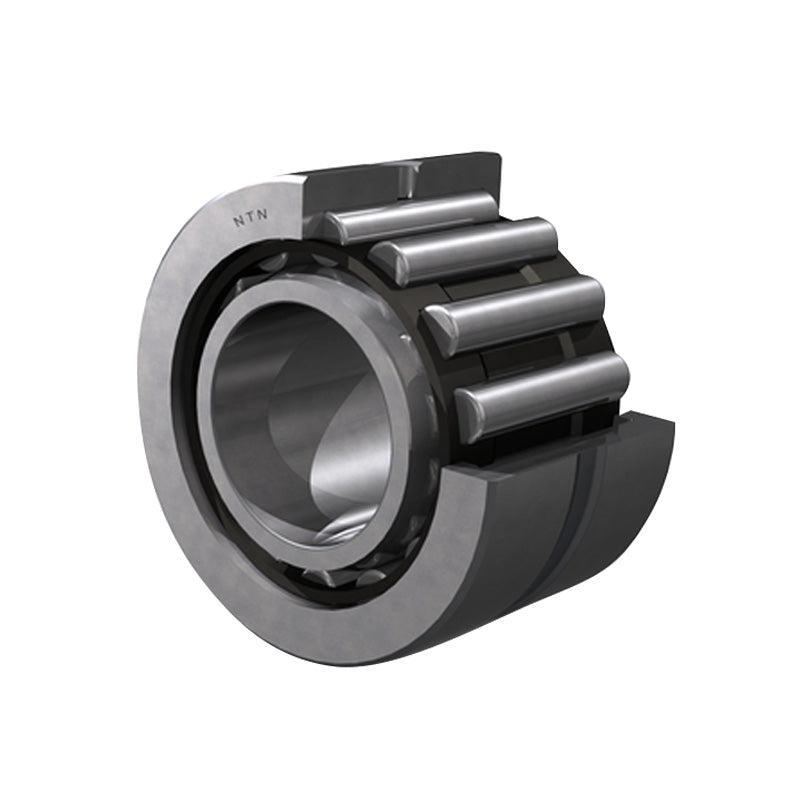

NTN NA6906R Machined Needle Roller Bearing with Shaft Sleeve 30x47x30mm

NTN NA6906R Machined Needle Roller Bearing with Shaft Sleeve 30x47x30mm
Regular price £33.54 ex VAT£40.25inc. VAT
Regular price Sale price £33.54 ex VAT£40.25 inc. VAT
Sale Sold out

In stock

Price Break
3+ £29.85
4+ £28.17
9+ £27.84
19+ £27.50
49+ £27.17
99+ £26.83
499+ £25.16
999+ £24.82
1999+ £24.48
2999+ £24.15
4999+ £23.48
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 30mm
D - Outside diameter 47mm
C - Width of bearing, drawn cup or outer ring 30mm
F - Under roller diameter 35mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 42.5 kN
C0r - Static load rating 67.5 kN
N - Grease lubrication limit speed 7500 tr/min
N - Oil lubrication limit speed 11000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 32mm
Da max - Outer ring maximum shoulder diameter 45mm
ras max - Maximum shaft & housing fillet radius 0.3mm
