SKU: NA4900LL/3AS-NTN

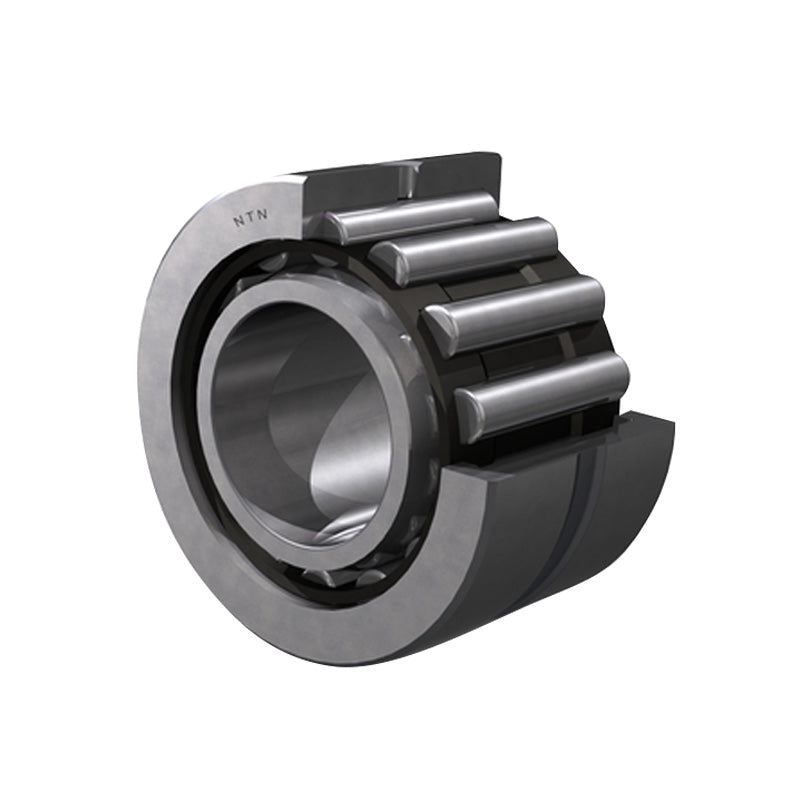

NTN NA4900LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 10x22x13mm

NTN NA4900LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 10x22x13mm
Regular price £17.76 ex VAT£21.31inc. VAT
Regular price Sale price £17.76 ex VAT£21.31 inc. VAT
Sale Sold out

In stock

Price Break
3+ £15.81
4+ £14.92
9+ £14.74
19+ £14.56
49+ £14.39
99+ £14.21
499+ £13.32
999+ £13.14
1999+ £12.96
2999+ £12.79
4999+ £12.43
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 10mm
D - Outside diameter 22mm
B - Width of bearing / Inner ring 14mm
C - Width of bearing, drawn cup or outer ring 13mm
F - Under roller diameter 14mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? Yes
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 7.2 kN
C0r - Static load rating 8.5 kN
N - Grease lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
da min - Inner ring minimum shoulder diameter 12mm
Da max - Outer ring maximum shoulder diameter 16mm
Db max - Outer ring maximum smooth shaft shoulder diameter 20mm
ras max - Maximum shaft & housing fillet radius 0.3mm
