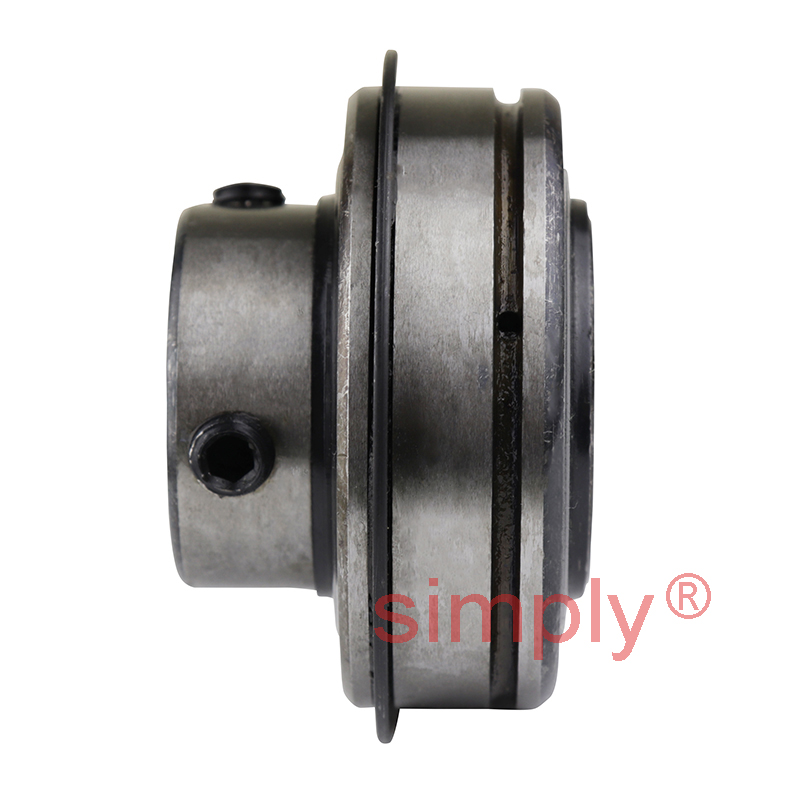

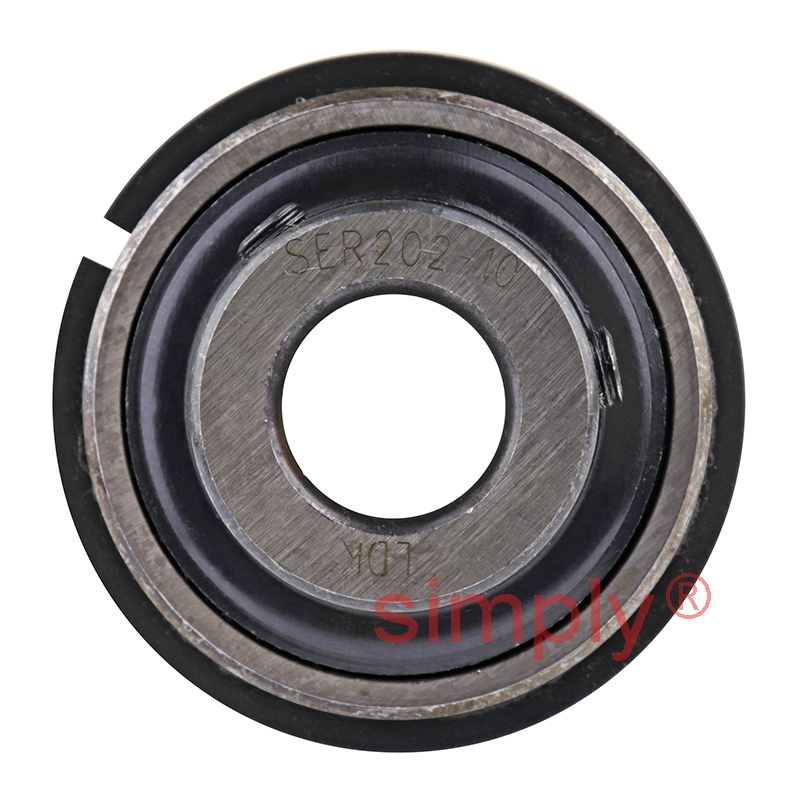

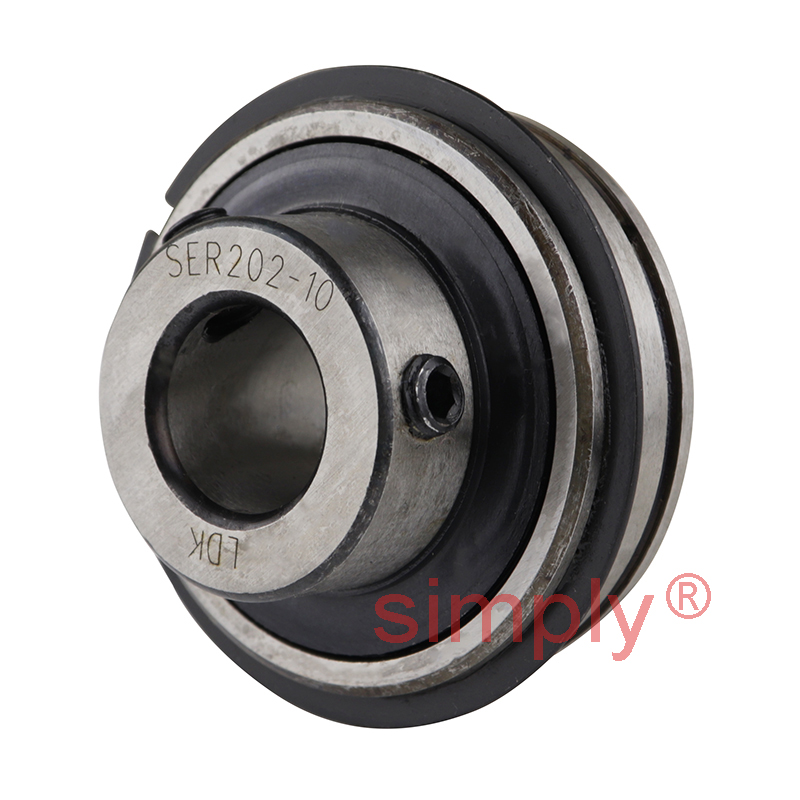

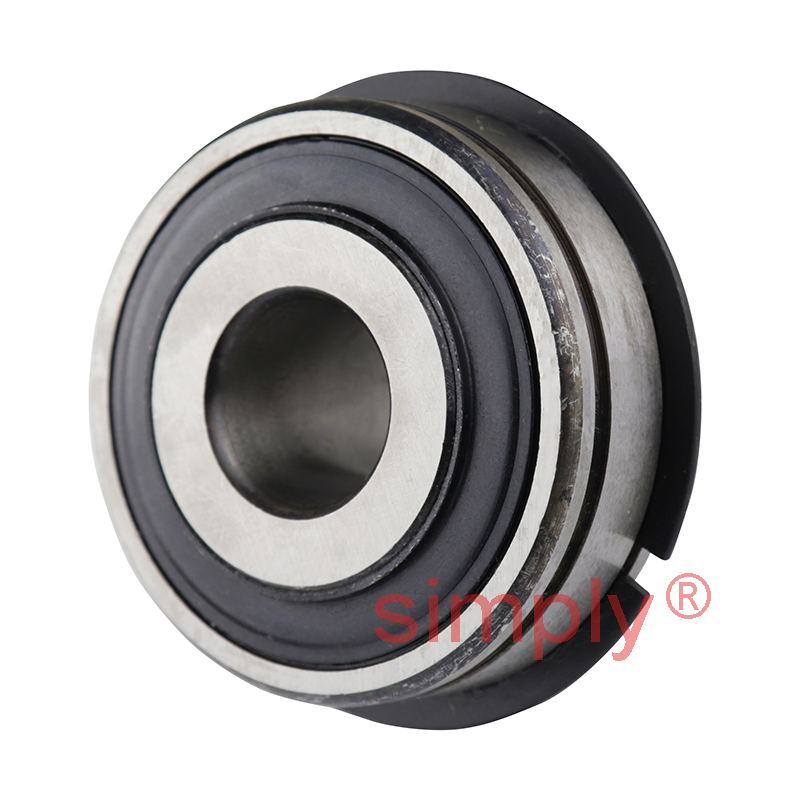

SER202-10 Imperial Bearing Insert and Snap Ring 5/8 inch Bore 47mm Outside Dia
£22.83
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £20.32 each |
| 4+ | £19.18 each |
| 9+ | £18.95 each |
| 19+ | £18.72 each |
| 49+ | £18.49 each |
| 99+ | £18.26 each |
| 499+ | £17.12 each |
| 999+ | £16.89 each |
| 1999+ | £16.66 each |
| 2999+ | £16.44 each |
| 4999+ | £15.98 each |
In Stock
| d | = | 5/8 inch |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 15.9mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| E | = | 12.09mm |
| a | = | 1.07mm |
| h | = | 4mm |
| R | = | 4.14mm |
| J | = | 2.46mm |
| P | = | 52.7mm |
| G | = | 4.8mm |
| Grub screw | = | 1/4"-28UNF |
| Weight | = | 0.22 kg |
| Dynamic load | = | 1010 kgf |
| Static load | = | 630 kgf |
