SKU: SB.206-19

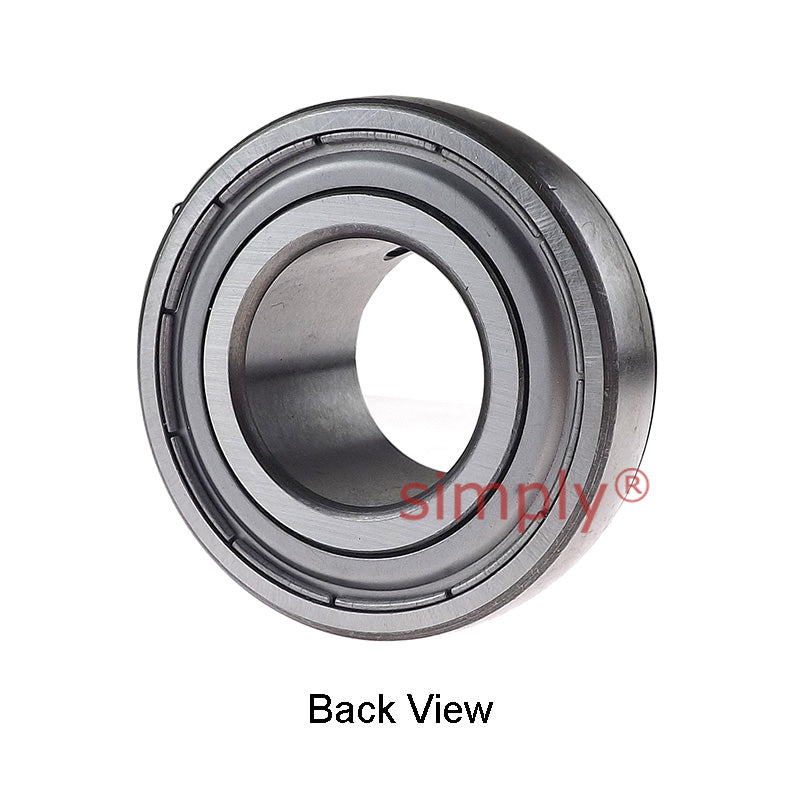

SB206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
SB206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
Regular price
£8.30
ex VAT£9.96inc. VAT
Regular price
Sale price
£8.30
ex VAT£9.96
inc. VAT
In stock
Price Break
3+
£7.39
4+
£6.97
9+
£6.89
19+
£6.81
49+
£6.73
99+
£6.64
499+
£6.23
999+
£6.14
1999+
£6.06
2999+
£5.98
4999+
£5.81
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Style:
- SB
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| Be | 16mm |
| D | 62mm |
| Bi | 30mm |
| n | 8mm |
| m | 22mm |
| G | 5.5mm |
| h | 5mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.27 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
