SKU: N.205.ETVP2/C3-FAG

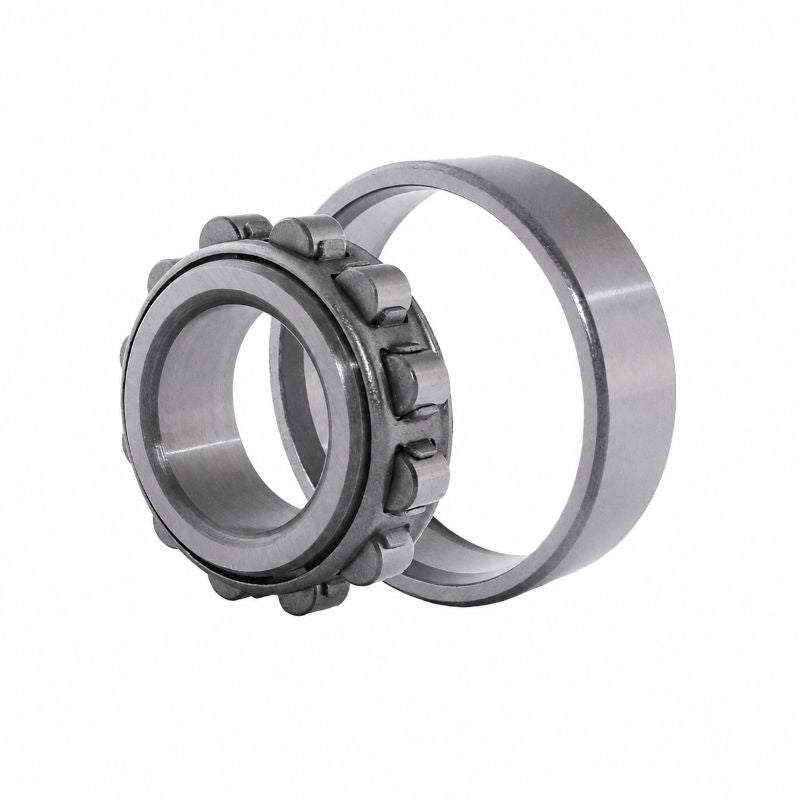

FAG N205-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 25x52x15mm
FAG N205-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 25x52x15mm
Regular price
£36.62
ex VAT£43.94inc. VAT
Regular price
Sale price
£36.62
ex VAT£43.94
inc. VAT
In stock
Price Break
10+
£32.59
19+
£30.76
29+
£30.39
39+
£30.03
49+
£29.66
74+
£29.30
99+
£27.47
199+
£27.10
249+
£26.73
499+
£26.37
999+
£25.63
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1mm |
| r1 min | 0.6mm |
| s | 1.3mm |
| E | 46.5mm |
| F | 31.5mm |
| d1 | 34.7mm |
| da min | 29mm |
| Da max | 46mm |
| Db min | 48mm |
| Dc max | 45mm |
| ra max | 1mm |
| ra1 max | 0.6mm |
| Dynamic load | 34500 N |
| Static load | 27500 N |
| Fatigue limit load | 4350 N |
| Limiting speed | 15000 rpm |
| Reference speed | 11800 rpm |
| Weight | 0.135 kg |
