SKU: NJ304-E-TVP2-FAG

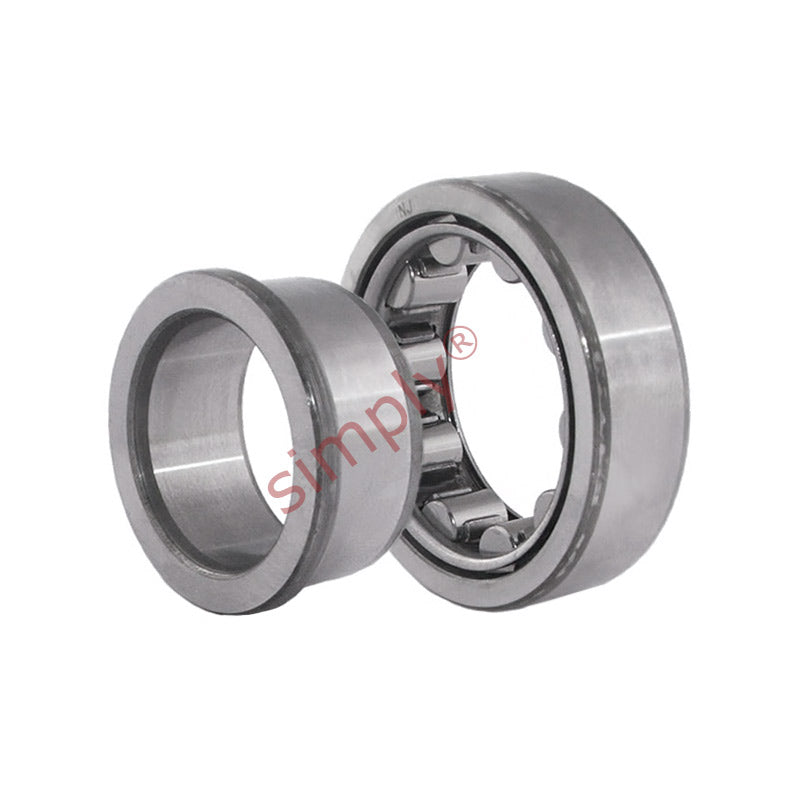

NJ304-E-TVP2 X-life Cylindrical Roller Bearing with Cage 20x52x15mm
NJ304-E-TVP2 X-life Cylindrical Roller Bearing with Cage 20x52x15mm
Regular price
£31.47
ex VAT£37.76inc. VAT
Regular price
Sale price
£31.47
ex VAT£37.76
inc. VAT
In stock
Price Break
10+
£28.01
19+
£26.43
29+
£26.12
39+
£25.81
49+
£25.49
74+
£25.18
99+
£23.60
199+
£23.29
249+
£22.97
499+
£22.66
999+
£22.03
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20 |
|---|---|
| D | 52 |
| B | 15 |
| r min | 1.1 |
| r1 min | 0.6 |
| s | 1 |
| E | 45.5 |
| F | 27.5 |
| D1 | 42.4 |
| d1 | 31.3 |
| da min | 24 |
| da max | 27 |
| dc min | 33 |
| Da max | 45 |
| ra max | 1 |
| Dynamic load | 36500 N |
| Static load | 26000 N |
| Fatigue limit load | 4050 N |
| Limiting speed | 14000 rpm |
| Reference speed | 12100 rpm |
| Weight | 0.156 kg |
