SKU: GRAE20-NPP-B-FA125.5-INA

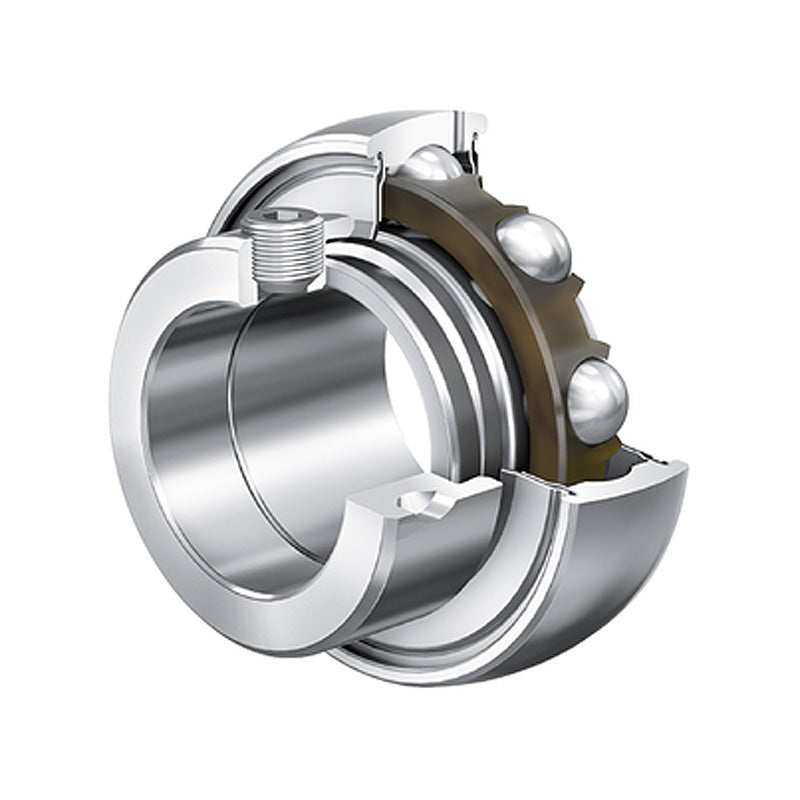

INA GRAE20-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 20x47x31mm
INA GRAE20-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 20x47x31mm
Regular price
£25.43
ex VAT£30.52inc. VAT
Regular price
Sale price
£25.43
ex VAT£30.52
inc. VAT
In stock
Price Break
3+
£22.63
5+
£21.36
10+
£21.11
15+
£20.85
20+
£20.60
30+
£20.34
40+
£19.07
50+
£18.82
60+
£18.56
75+
£18.31
100+
£17.80
Description
Description
|
INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 31mm
Technical
Technical
| d | 20mm |
|---|---|
| Dsp | 47mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 14mm |
| Ca | 4mm |
| d2 | 26.9mm |
| d3 max | 33mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.16 kg |
