SKU: GLE40-KRR-B-INA

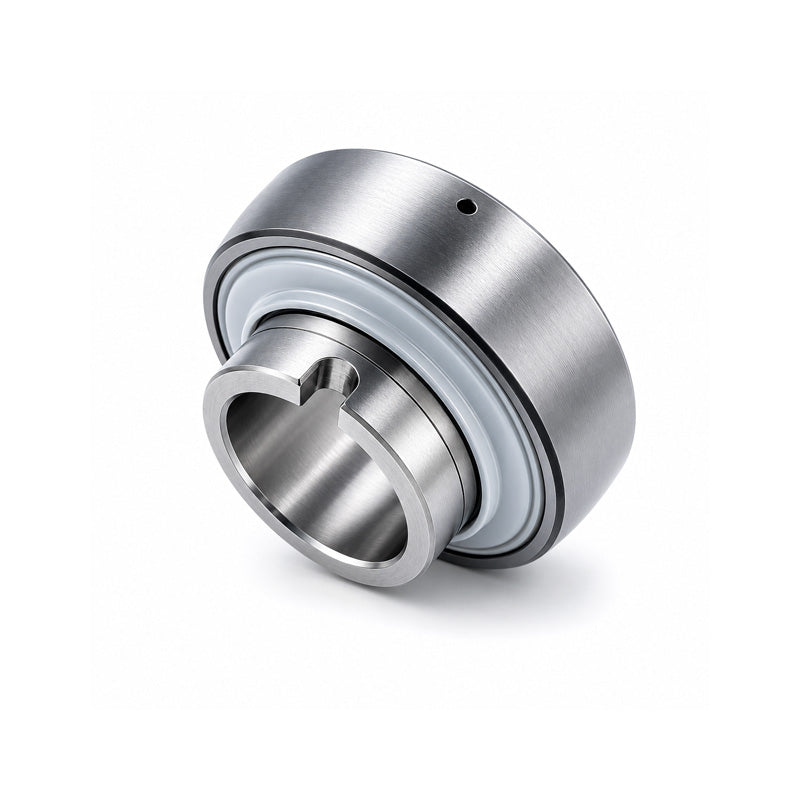

INA GLE40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 40x80x42.9mm
INA GLE40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 40x80x42.9mm
Regular price
£57.68
ex VAT£69.22inc. VAT
Regular price
Sale price
£57.68
ex VAT£69.22
inc. VAT
In stock
Price Break
3+
£51.34
5+
£48.45
10+
£47.87
15+
£47.30
20+
£46.72
30+
£46.14
40+
£43.26
50+
£42.68
60+
£42.11
75+
£41.53
100+
£40.38
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 42.9mm
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B | 42.9mm |
| b | 7mm |
| C | 21mm |
| C2 | 23.5mm |
| Ca | 6.4mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| N | 9mm |
| S | 15.9mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.57 kg |
