SKU: CRB30/92-INA

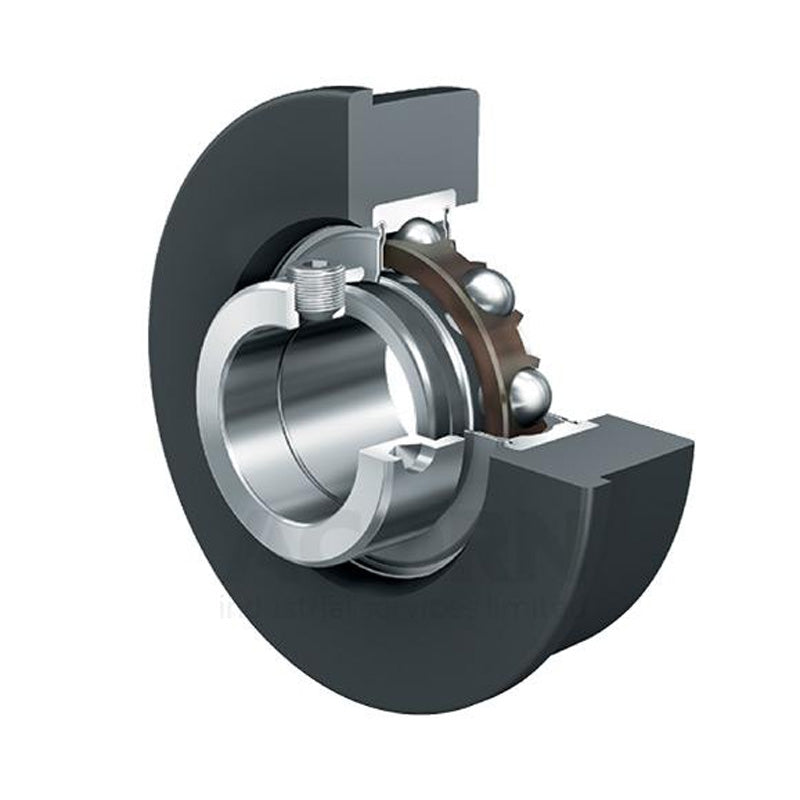

INA CRB30/92XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x93x40.7mm
INA CRB30/92XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 30x93x40.7mm
Regular price
£46.43
ex VAT£55.72inc. VAT
Regular price
Sale price
£46.43
ex VAT£55.72
inc. VAT
In stock
Price Break
3+
£41.32
5+
£39.00
10+
£38.54
15+
£38.07
20+
£37.61
30+
£37.14
40+
£34.82
50+
£34.36
60+
£33.89
75+
£33.43
100+
£32.50
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 93mm
- Width:
- 40.7mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 93mm |
| B2 | 40.7mm |
| B1 | 35.8mm |
| C | 28mm |
| C1 | 5mm |
| D1 | 98mm |
| D2 | 56mm |
| d3 max | 44mm |
| S2 | 14mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 1400 N |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Designation of rubber interliner | CR62/92 |
| Designation of bearing | RAE30-NPP |
| Weight | 0.41 kg |
