SKU: BE40-INA

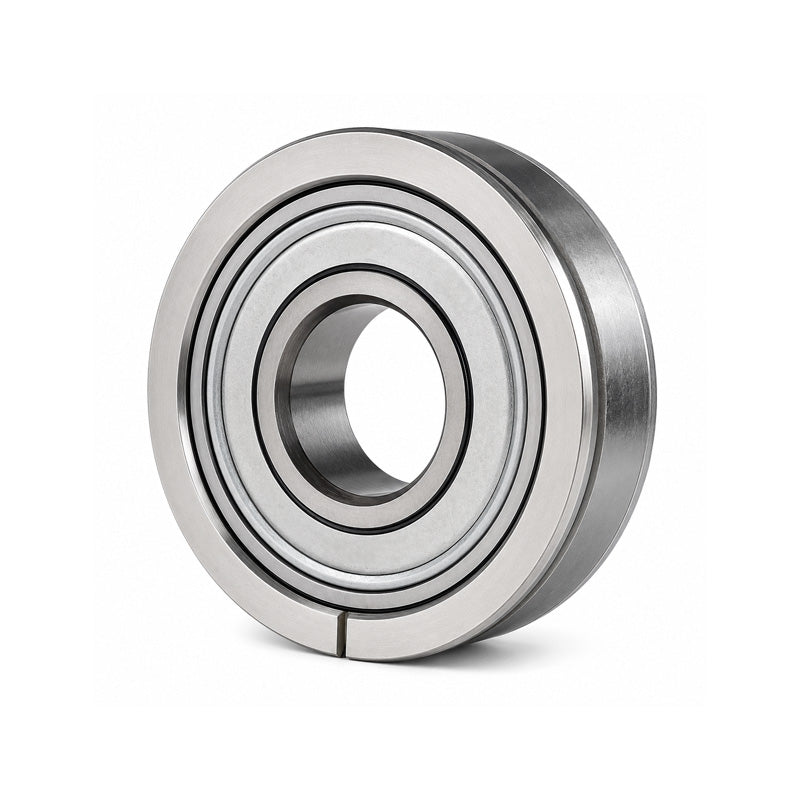

INA BE40 Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals 40x90x25mm
INA BE40 Metric Parallel Outer Bearing Insert with Steel Aligning Ring and P Seals 40x90x25mm
Regular price
€67,95
ex VAT
Regular price
Sale price
€67,95
ex VAT
In stock
Price Break
3+
€51,15
5+
€48,27
10+
€47,70
15+
€47,13
20+
€46,55
30+
€45,98
40+
€43,10
50+
€42,53
60+
€41,95
75+
€41,38
100+
€40,23
Description
Description
|
INA BE Series Inserts: Bearing insert with parallel bore with steel aligning ring and P seals. These radial insert ball bearings have an axially split outer ring as an aligning ring. They are mounted in cylindrical bores and compensate for static misalignment of the shaft up to ±5 degrees. Due to the annular slots in the outer ring to DIN 616, they are highly suitable for sheet metal constructions. In this case, they are axially located using snap rings to DIN 5 417. The inner ring is located on the shaft by a location fit. The aligning ring has a Corrotect® coating and is thus protected against fretting corrosion. These bearings cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 25mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| A | 25mm |
| B | 18mm |
| b | 2.7mm Tolerance: +0.3 |
| C1 | 15.4mm Tolerance: +0.2 |
| D1 | 86.8mm Tolerance: -0.5 |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Designation of bearing | 208-NPP-B |
| Weight | 0.63 kg |
