SKU: CNBH-28-SB

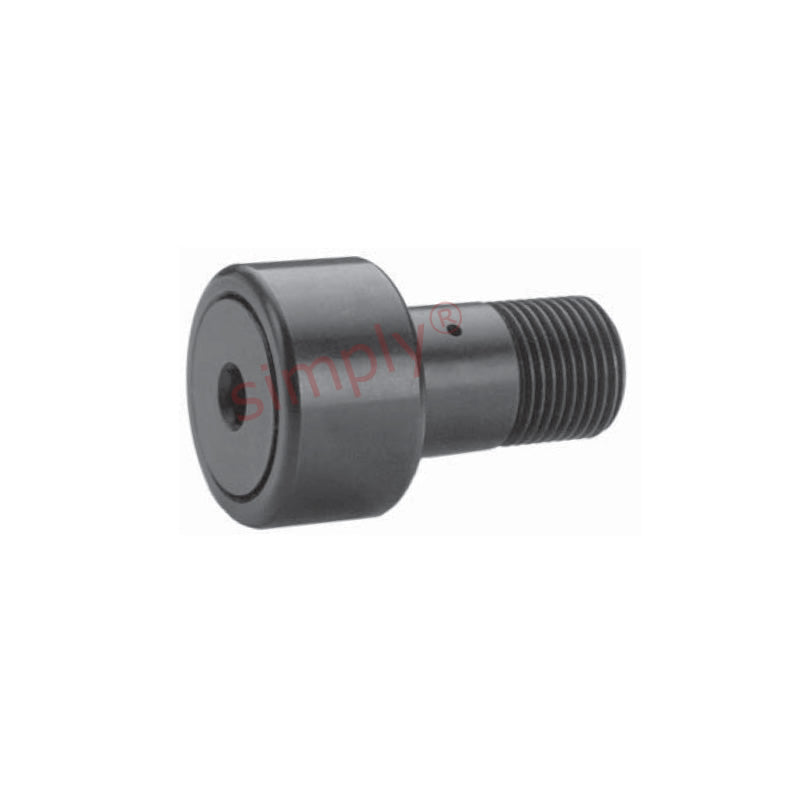

Major Brand CNBH28SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 7/8 inch Outside Diameter
Major Brand CNBH28SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 7/8 inch Outside Diameter
Regular price
£36.34
ex VAT£43.61inc. VAT
Regular price
Sale price
£36.34
ex VAT£43.61
inc. VAT
Equivalent to: CFH-7/8-SB H-28-LW HR-7/8-XB CRHSB-14 CRH14VBUU
In stock
Price Break
3+
£32.34
4+
£30.52
9+
£30.16
19+
£29.80
29+
£29.43
39+
£29.07
49+
£27.25
59+
£26.89
249+
£26.53
499+
£26.16
999+
£25.44
Description
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CFH-7/8-SB H-28-LW HR-7/8-XB CRHSB-14 CRH14VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
- Pitch:
- UNF 7/16-20
Technical
Technical
| A | 0.875 inch |
|---|---|
| B | 0.5 inch |
| C | 0.4375 inch |
| D | 0.875 inch |
| E | 0.375 inch |
| Thread class 2A F | 7/16-20 UNF |
| G | 1/4 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 39/64 inch |
| Recommended bore | 0.4375 inch |
| Recommended torque | 250 lbf-in |
| Max static capacity | 4130 lbs |
| Basic dynamic rating | 1660 lbs |
