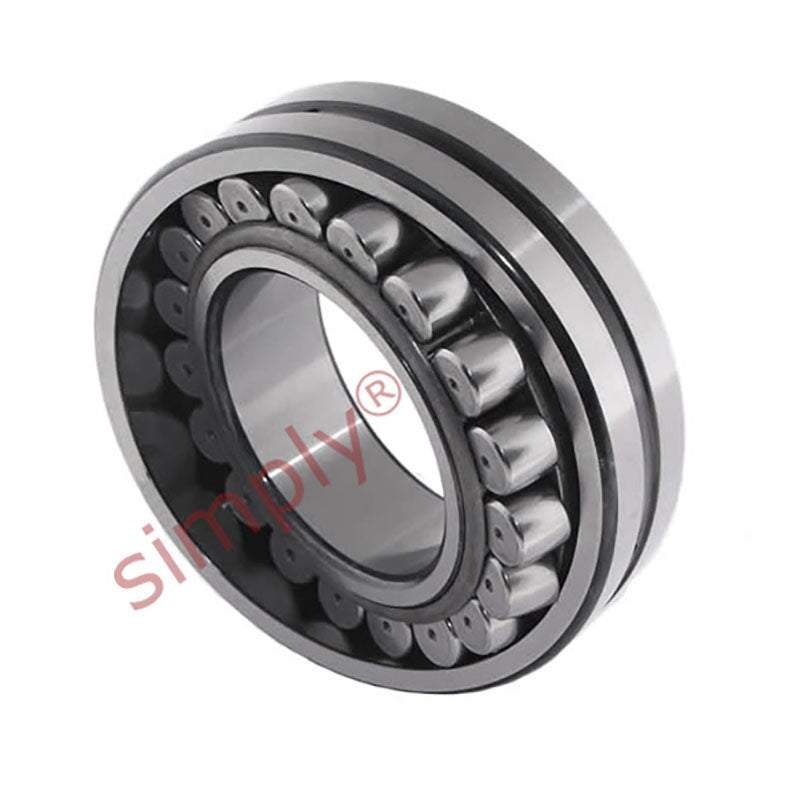

FAG 21305E1TVPB X-life Spherical Roller Bearing with Cylindrical Bore with Glass Fibre Reinforced Polyamide Cage 25x62x17mm
£50.23
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £48.22 each |
| 4+ | £47.21 each |
| 9+ | £46.21 each |
| 19+ | £45.20 each |
| 29+ | £44.20 each |
| 39+ | £43.20 each |
| 49+ | £42.19 each |
| 59+ | £41.19 each |
| 249+ | £40.18 each |
| 499+ | £39.18 each |
| 999+ | £38.17 each |
In Stock
| Dimensions | ||
| d | = | 25mm |
| D | = | 62mm |
| B | = | 17mm |
| r min. | = | 1.1mm |
| D1 | = | 51mm |
| d2 | = | 35.2mm |
| da min. | = | 32mm |
| Da max. | = | 55mm |
| ra max. | = | 1mm |
| Loads, Speeds and Weights | ||
| Fatigue limit load | = | 4750 N |
| Limiting speed | = | 13000 rpm |
| Reference speed | = | 8400 rpm |
| Dynamic Load Rating | = | 52000 N |
| Static Load Rating | = | 43500 N |
| Weight | = | 0.254kg |
| Factors | ||
| e | = | 0.28 |
| Y1 | = | 2.43 |
| Y2 | = | 3.61 |
| Y0 | = | 2.37 |
