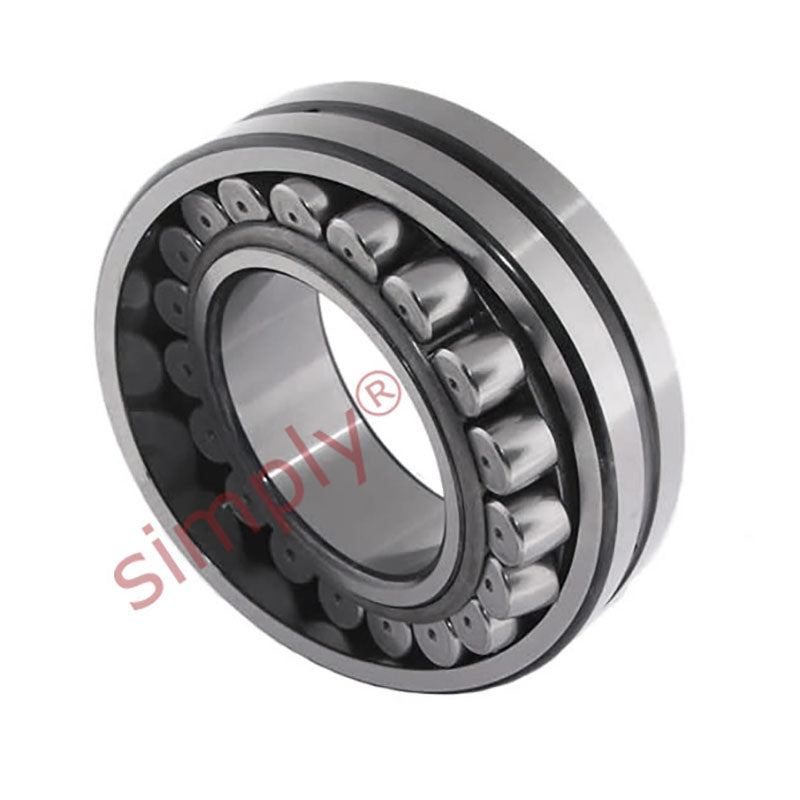

FAG 21319E1KTVPB X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 95x200x45mm
Equivalent to: 21319K
£304.47
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £270.97 each |
| 4+ | £255.75 each |
| 9+ | £252.71 each |
| 19+ | £249.66 each |
| 29+ | £246.62 each |
| 39+ | £243.57 each |
| 49+ | £228.35 each |
In Stock
| Dimensions | ||
| d | = | 95mm |
| D | = | 200mm |
| B | = | 45mm |
| r min. | = | 3mm |
| D1 | = | 169.4mm |
| d2 | = | 124.3mm |
| ds | = | 4.8mm |
| ns | = | 9.5mm |
| da min. | = | 109mm |
| Da max. | = | 186mm |
| ra max. | = | 2.5mm |
| Loads, Speeds and Weights | ||
| Fatigue limit load | = | 47500 N |
| Limiting speed | = | 4000 rpm |
| Reference speed | = | 3200 rpm |
| Dynamic Load Rating | = | 430000 N |
| Static Load Rating | = | 460000 N |
| Weight | = | 6.53kg |
| Factors | ||
| e | = | 0.22 |
| Y1 | = | 3.04 |
| Y2 | = | 4.53 |
| Y0 | = | 2.97 |
| Matching Adaptor Sleeves | ||
| Sleeve No. | = | H319 |
| Sleeve No. | = | HE319 |
| Matching Withdrawal Sleeves | ||
| Sleeve No. | = | AHX319 |
