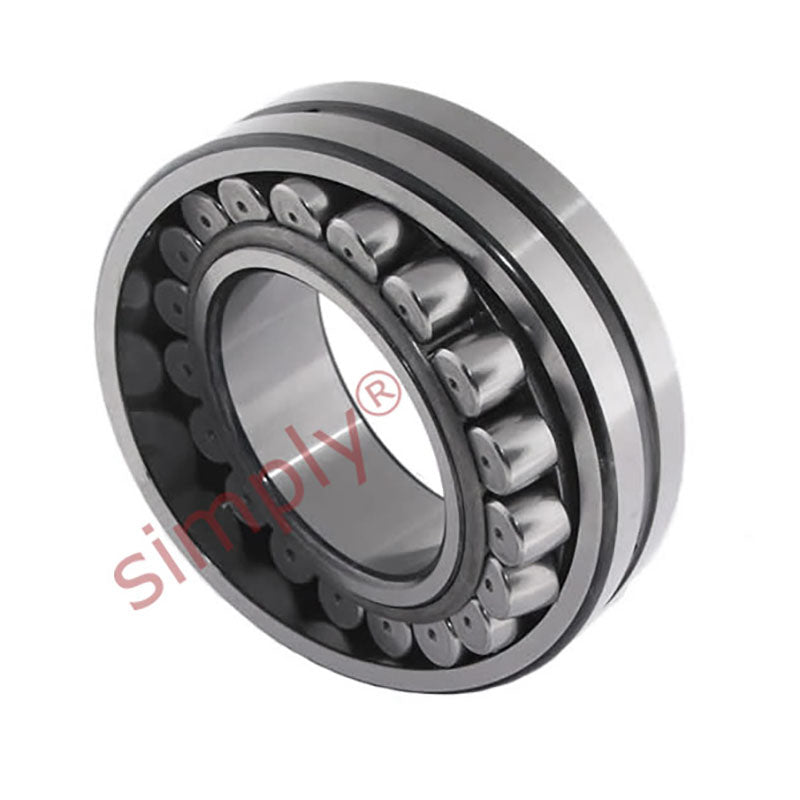

FAG 22226E1 X-life Spherical Roller Bearing with Cylindrical Bore 130x230x64mm
£433.54
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £385.85 each |
| 4+ | £364.18 each |
| 9+ | £359.84 each |
| 19+ | £355.51 each |
| 29+ | £351.17 each |
| 39+ | £346.83 each |
| 49+ | £325.16 each |
In Stock
| Dimensions | ||
| d | = | 130mm |
| D | = | 230mm |
| B | = | 64mm |
| r min. | = | 3mm |
| D1 | = | 205mm |
| d2 | = | 151.7mm |
| ds | = | 6.3mm |
| ns | = | 12.2mm |
| da min. | = | 144mm |
| Da max. | = | 216mm |
| ra max. | = | 2.5mm |
| Loads, Speeds and Weights | ||
| Fatigue limit load | = | 79000 N |
| Limiting speed | = | 3000 rpm |
| Reference speed | = | 2500 rpm |
| Dynamic Load Rating | = | 760000 N |
| Static Load Rating | = | 890000 N |
| Weight | = | 11.3kg |
| Factors | ||
| e | = | 0.26 |
| Y1 | = | 2.62 |
| Y2 | = | 3.9 |
| Y0 | = | 2.56 |
