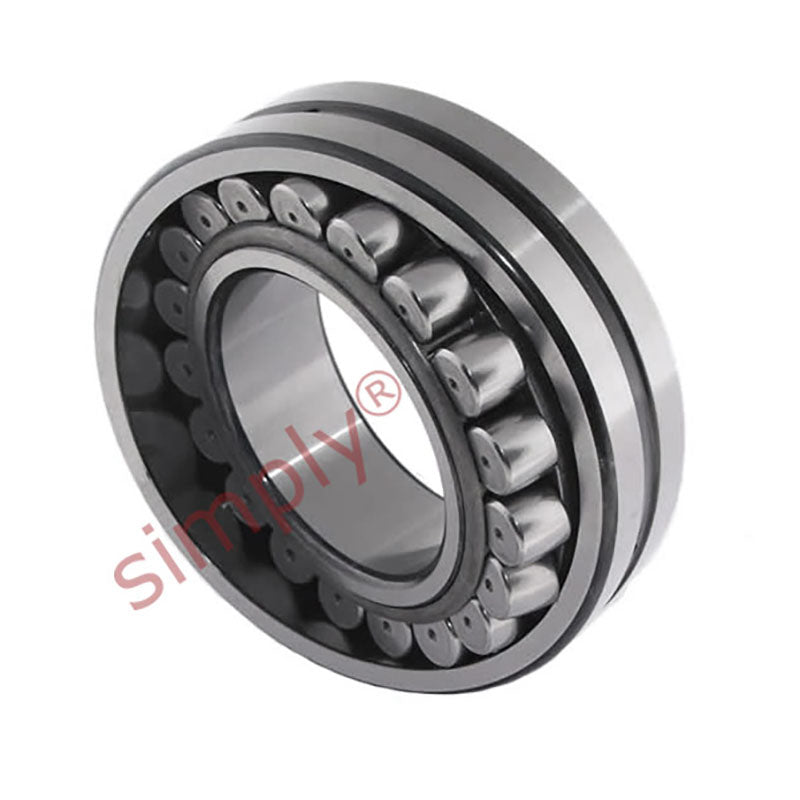

FAG 23040E1KTVPB X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 200x310x82mm
Equivalent to: 23040K
£1000.90
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £890.80 each |
| 4+ | £840.76 each |
| 9+ | £830.75 each |
| 19+ | £820.74 each |
| 29+ | £810.73 each |
| 39+ | £800.72 each |
| 49+ | £750.68 each |
In Stock
| Dimensions | ||
| d | = | 200mm |
| D | = | 310mm |
| B | = | 82mm |
| r min. | = | 2.1mm |
| D1 | = | 281.6mm |
| d2 | = | 223.4mm |
| ds | = | 8mm |
| ns | = | 15mm |
| da min. | = | 210.2mm |
| Da max. | = | 299.8mm |
| ra max. | = | 2.1mm |
| Loads, Speeds and Weights | ||
| Fatigue limit load | = | 203000 N |
| Limiting speed | = | 2400 rpm |
| Reference speed | = | 1550 rpm |
| Dynamic Load Rating | = | 1270000 N |
| Static Load Rating | = | 1800000 N |
| Weight | = | 20.8kg |
| Factors | ||
| e | = | 0.23 |
| Y1 | = | 2.9 |
| Y2 | = | 4.31 |
| Y0 | = | 2.83 |
| Matching Adaptor Sleeves | ||
| Sleeve No. | = | H3040 |
| Sleeve No. | = | HE3040 |
| Sleeve No. | = | HA3040 |
| Matching Withdrawal Sleeves | ||
| Sleeve No. | = | AH3040G |
