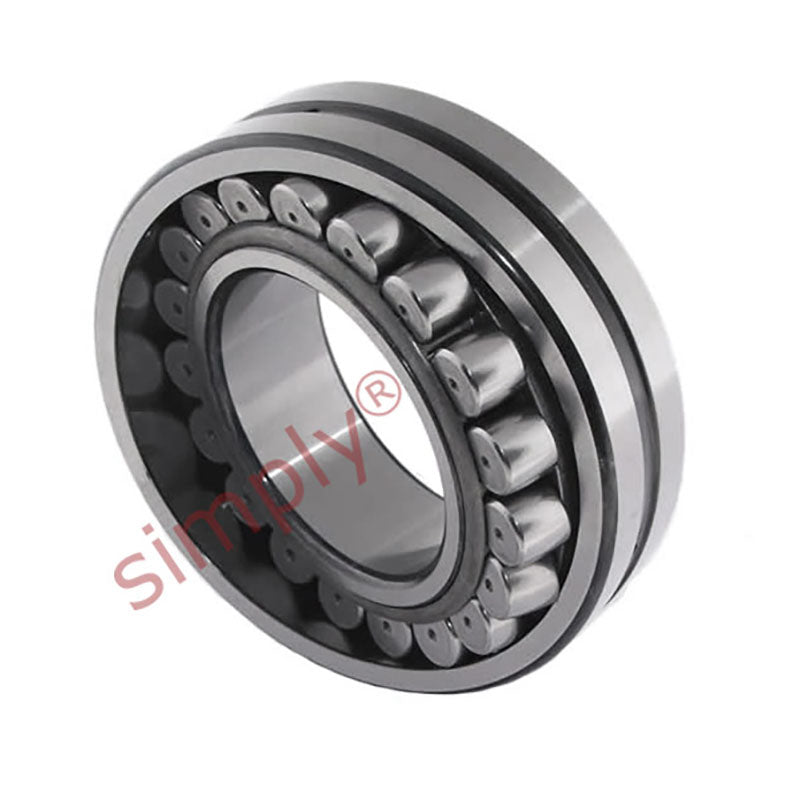

FAG 24034E1C3 X-life Spherical Roller Bearing with Cylindrical Bore 170x260x90mm
What is C3? [Click Here]
£910.48
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £810.32 each |
| 4+ | £764.80 each |
| 9+ | £755.69 each |
| 19+ | £746.59 each |
| 29+ | £737.48 each |
| 39+ | £728.38 each |
| 49+ | £682.86 each |
In Stock
| Dimensions | ||
| d | = | 170mm |
| D | = | 260mm |
| B | = | 90mm |
| r min. | = | 2.1mm |
| D1 | = | 228.8mm |
| d2 | = | 190mm |
| ds | = | 4.8mm |
| ns | = | 9.5mm |
| da min. | = | 180.2mm |
| Da max. | = | 249.8mm |
| ra max. | = | 2.1mm |
| Loads, Speeds and Weights | ||
| Fatigue limit load | = | 159000 N |
| Limiting speed | = | 2400 rpm |
| Reference speed | = | 1540 rpm |
| Dynamic Load Rating | = | 940000 N |
| Static Load Rating | = | 1480000 N |
| Weight | = | 17.4kg |
| Factors | ||
| e | = | 0.29 |
| Y1 | = | 2.2 |
| Y2 | = | 3.27 |
| Y0 | = | 2.15 |
