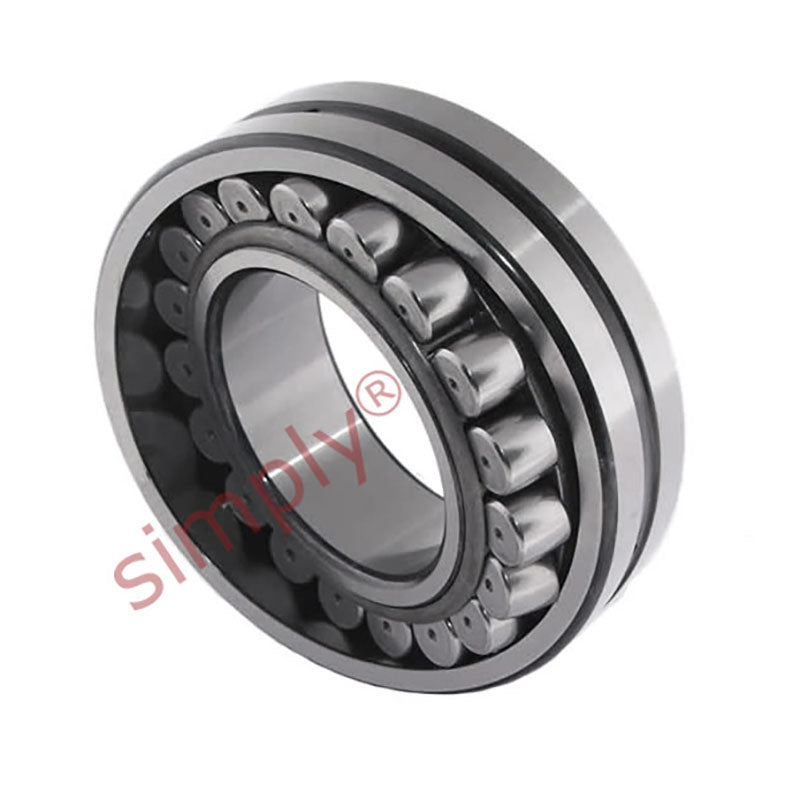

FAG 22208E1K X-life Spherical Roller Bearing with AH308 Withdrawal Sleeve 35x80x23mm
£86.47
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £83.01 each |
| 4+ | £81.28 each |
| 9+ | £79.55 each |
| 19+ | £77.83 each |
| 29+ | £76.10 each |
| 39+ | £74.37 each |
| 49+ | £72.64 each |
| 59+ | £70.91 each |
| 249+ | £69.18 each |
| 499+ | £67.45 each |
| 999+ | £65.72 each |
In Stock
| d1H | = | 35mm |
| d | = | 40mm |
| D | = | 80mm |
| B | = | 23mm |
| r min | = | 1.1mm |
| D1 | = | 70.4mm |
| d2 | = | 48.6mm |
| ds | = | 3.2mm |
| ns | = | 4.8mm |
| a | = | 3mm |
| b | = | 6mm |
| Thread d2G | = | M45X1.5 |
| l | = | 29mm |
| da min | = | 47mm |
| Da max | = | 73mm |
| ra max | = | 1mm |
| Dynamic load Cr | = | 101000 N |
| Static load C0r | = | 91000 N |
| e | = | 0.28 |
| Y1 | = | 2.41 |
| Y2 | = | 3.59 |
| Y0 | = | 2.35 |
| Fatigue load limit Cur | = | 11800 N |
| Limiting speed nG | = | 10000 rpm |
| Reference speed nB | = | 6200 rpm |
| Bearing weight | = | 0.517 kg |
| Withdrawal sleeve weight | = | 0.089 kg |
