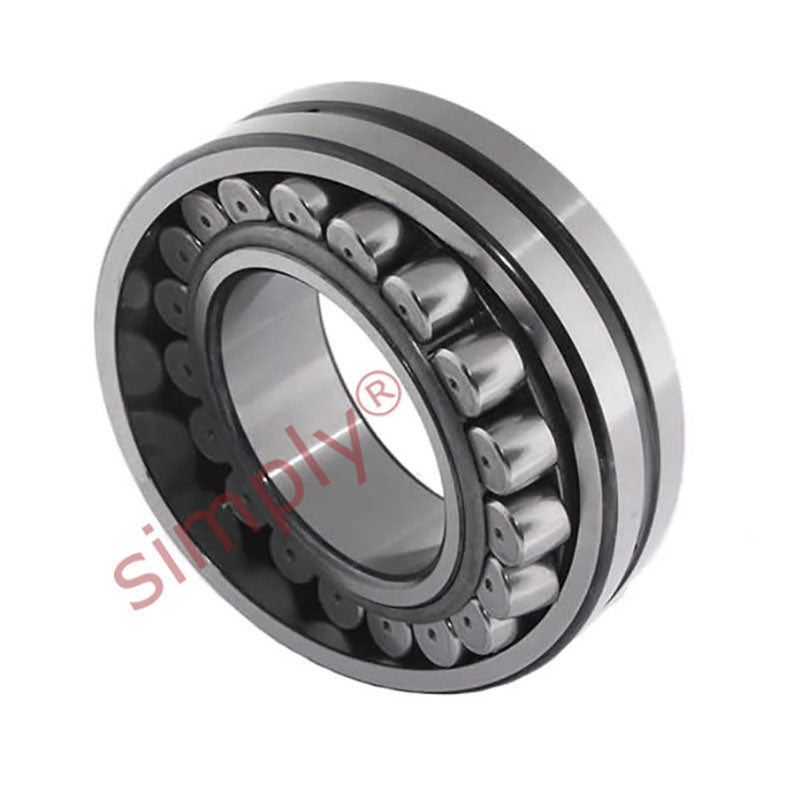

FAG 23032E1AKMC3 X-life Spherical Roller Bearing with AH3032 Withdrawal Sleeve 150x240x60mm
£862.97
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £768.05 each |
| 4+ | £724.90 each |
| 9+ | £716.27 each |
| 19+ | £707.64 each |
| 29+ | £699.01 each |
| 39+ | £690.38 each |
| 49+ | £647.23 each |
In Stock
| d1H | = | 150mm |
| d | = | 160mm |
| D | = | 240mm |
| B | = | 60mm |
| r min | = | 2.1mm |
| D1 | = | 219.9mm |
| ds | = | 6.3mm |
| ns | = | 12.2mm |
| a | = | 5mm |
| b | = | 16mm |
| Thread d2G | = | M170X3 |
| l | = | 77mm |
| da min | = | 170.2mm |
| Da max | = | 229.8mm |
| ra max | = | 2.1mm |
| Dynamic load Cr | = | 720000 N |
| Static load C0r | = | 1010000 N |
| e | = | 0.22 |
| Y1 | = | 3.1 |
| Y2 | = | 4.62 |
| Y0 | = | 3.03 |
| Fatigue load limit Cur | = | 94000 N |
| Limiting speed nG | = | 2800 rpm |
| Reference speed nB | = | 2060 rpm |
| Bearing weight | = | 9.42 kg |
| Withdrawal sleeve weight | = | 2.04 kg |
