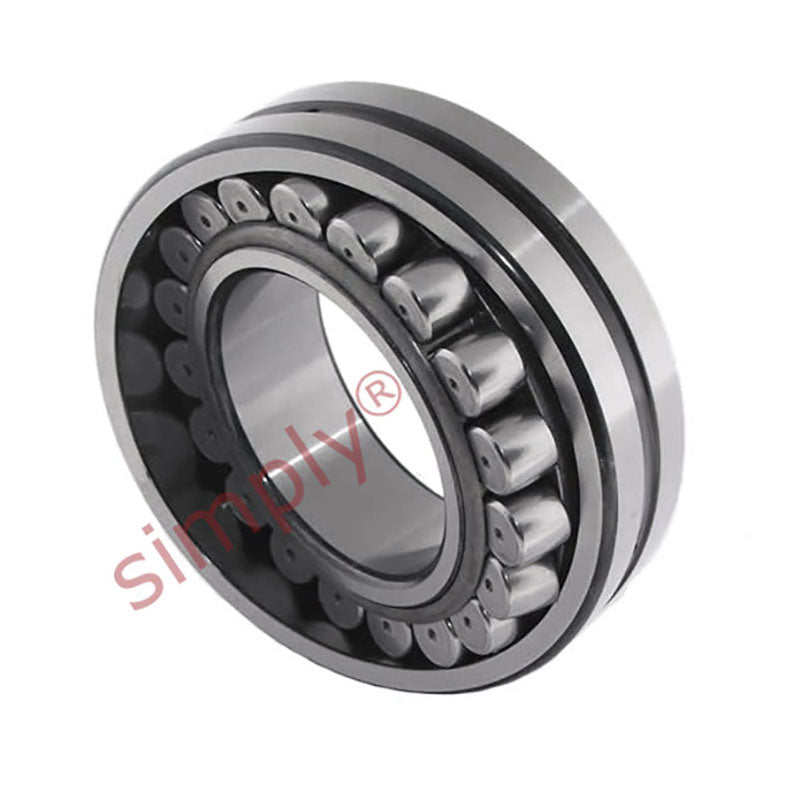

FAG 23132E1AKMC3 X-life Spherical Roller Bearing with AH3132A Withdrawal Sleeve 150x270x86mm
£1197.65
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £1065.91 each |
| 4+ | £1006.03 each |
| 9+ | £994.05 each |
| 19+ | £982.08 each |
| 29+ | £970.10 each |
| 39+ | £958.12 each |
| 49+ | £898.24 each |
In Stock
| d1H | = | 150mm |
| d | = | 160mm |
| D | = | 270mm |
| B | = | 86mm |
| r min | = | 2.1mm |
| D1 | = | 238.3mm |
| ds | = | 8mm |
| ns | = | 15mm |
| a | = | 5mm |
| b | = | 16mm |
| Thread d2G | = | M170X3 |
| l | = | 103mm |
| da min | = | 172mm |
| Da max | = | 258mm |
| ra max | = | 2.1mm |
| Dynamic load Cr | = | 1160000 N |
| Static load C0r | = | 1550000 N |
| e | = | 0.29 |
| Y1 | = | 2.32 |
| Y2 | = | 3.45 |
| Y0 | = | 2.26 |
| Fatigue load limit Cur | = | 164000 N |
| Limiting speed nG | = | 2400 rpm |
| Reference speed nB | = | 1560 rpm |
| Bearing weight | = | 18.6 kg |
| Withdrawal sleeve weight | = | 2.87 kg |
