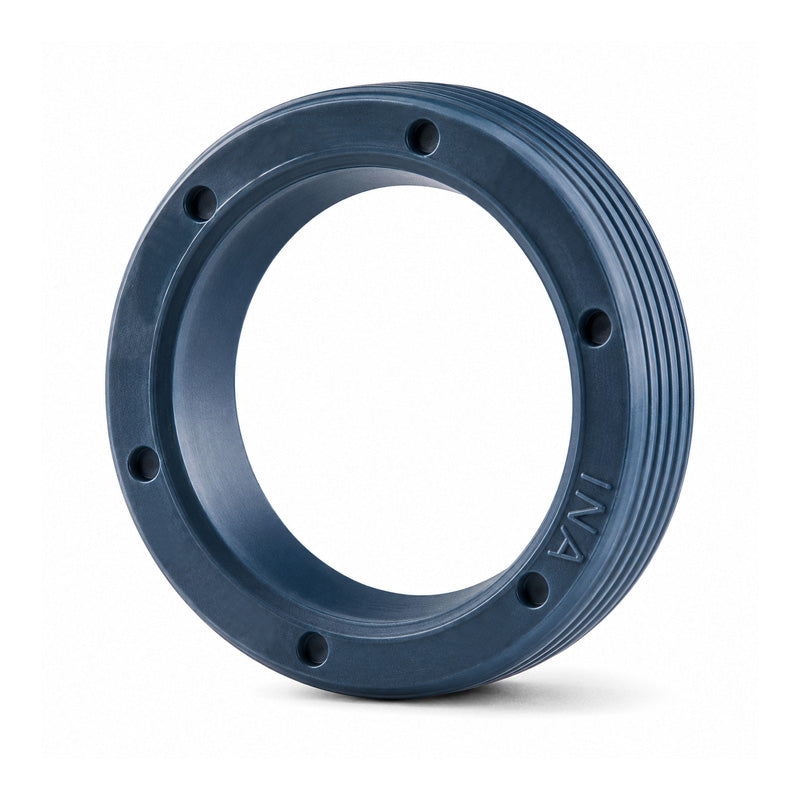

INA GR40X47X4AB Single Lip Nitrile Rubber Oil Seal 40x47x4mm

Page Feedback?

Equivalent to: G40X47X4B,G40X47X4A/B

Chemical Resistance Table [Click Here]

INA GR40X47X4AB Single Lip Nitrile Rubber Oil Seal 40x47x4mm

SKU: G40X47X4A/B-INA

£12.37 ex VAT

Price Breaks

Quantity	Prices
4+	£11.01 each
9+	£10.39 each
19+	£10.27 each
29+	£10.14 each
39+	£10.02 each
49+	£9.90 each
59+	£9.28 each
69+	£9.15 each
79+	£9.03 each
89+	£8.91 each
99+	£8.66 each

4+ £11.01 each
9+ £10.39 each
19+ £10.27 eachClick Here…

In Stock

Add to a Save List

Nitrile Single Lip Sealing Rings: Designed as contact seals, these sealing rings protect the bearing position against contamination, spray water and the excessive loss of grease. Sealing rings are matched to the small radial dimensions of needle roller bearings. They are very easy to fit, as they are simply pressed into the housing bore. Sealing rings allow circumferential speeds at the seal lip of up to 10 m/s depending on the surface quality of the shaft. This sealing ring is made from synthetic NBR elastomer (coloured green). They are suitable for shaft diameters from 8mm to 80mm and have a rubber-encased steel reinforcement for stiffening purposes with a wave-shaped rubber profile. This provides good sealing on the outside diameter and reduces the forces required for fitting. Suitable for operating temperatures from -30 to +110 deg C.
Benefits: Improved sealing on the outside diameter, reduced force required for fitting.
