SKU: PBS25-XL-INA

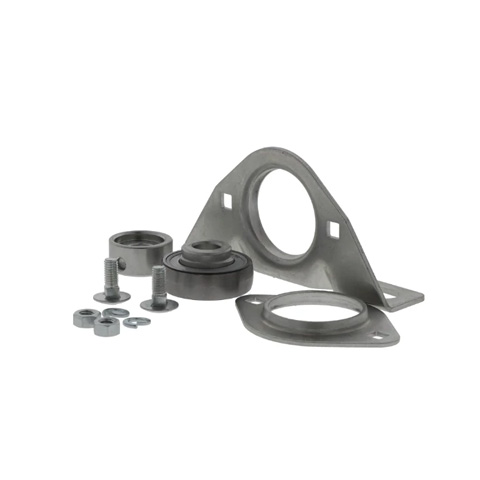

INA PBS25XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 25mm Bore
INA PBS25XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 25mm Bore
Regular price
£37.63
ex VAT£45.16inc. VAT
Regular price
Sale price
£37.63
ex VAT£45.16
inc. VAT
In stock
Price Break
10+
£33.49
19+
£31.61
29+
£31.23
39+
£30.86
49+
£30.48
74+
£30.10
99+
£28.22
199+
£27.85
249+
£27.47
499+
£27.09
999+
£26.34
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing has Corrotect® coating, eccentric collar. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Style:
- PBS
- Bolt Hole Centres:
- 95.5mm
Technical
Technical
| d | 25mm |
|---|---|
| L | 133.5mm |
| H2 | 72mm |
| A | 34.1mm |
| A1 | 17.4mm |
| B1 | 31mmd3 max |
| 37.5mm | H |
| 36.5mm | H1 |
| 3.4mm | J |
| 95.5mm | N |
| 10.5mm | N1 |
| 9.5mm | P |
| 25.4mm | S |
| 14.3mm | S1 |
| 23.5mm | Mass |
| 0.49 kg | Load carrying capacity of housing Cor G |
| 3600 N | Basic dynamic load rating Cr |
| 14900 N | Basic static load rating Cor |
| 7800 N | Designation of housing |
| GEH52-PBS? | Designation of bearing |
| RAE25-XL-NPP-B? | N/A |
