INA RCJTY45-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 45mm Bore
£196.74
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £175.10 each |
| 9+ | £165.26 each |
| 19+ | £163.30 each |
| 29+ | £161.33 each |
| 39+ | £159.36 each |
| 49+ | £157.39 each |
| 59+ | £147.56 each |
| 69+ | £145.59 each |
| 79+ | £143.62 each |
| 89+ | £141.65 each |
| 99+ | £137.72 each |
In Stock

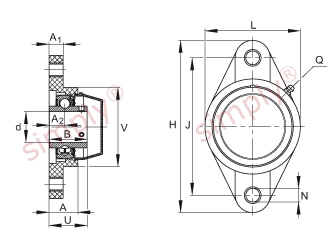

| d | = | 45mm |
| H | = | 188.5mm |
| U | = | 54.2mm |
| A | = | 41mm |
| A1 | = | 21mm |
| A2 | = | 24mm |
| B | = | 49.2mm |
| J | = | 148.5mm |
| L | = | 108mm |
| N | = | 17mm |
| Q | = | 1/4 - 28 UNF |
| V | = | 108mm |
| Mass | = | 1.05 kg |
| Basic dynamic load rating Cr | = | 31500 N |
| Basic static load rating Cor | = | 19400 N |
| Load carrying capacity of housing Cor G | = | 15100 N |
| Designation of housing | = | GEH.CJT09-TV |
| Designation of bearing | = | GYE45-KRR-B-FA107-VA |
| Bearing end cap, closed design (supplied with end cap) | = | KASK09-S-G |
| Bearing end cap, open design, with integral rotary shaft seal (available by agreement) | = | KASK09-S-R-NBR |
