SKU: 40B-3-NO11-DUN
Branded 40B-3-NO11 BS Triplex Chain Cottered Connecting Link 2-1/2 inch Pitch
Branded 40B-3-NO11 BS Triplex Chain Cottered Connecting Link 2-1/2 inch Pitch
Regular price
€99,95
ex VAT
Regular price
Sale price
€99,95
ex VAT
Equivalent to: 40B-3-CL-COT 40B-3-CL
In stock
Price Break
2+
€76,06
5+
€71,79
10+
€70,93
29+
€70,08
49+
€69,22
75+
€68,37
100+
€64,09
200+
€63,24
250+
€62,39
500+
€61,53
1000+
€59,82
Description
Description

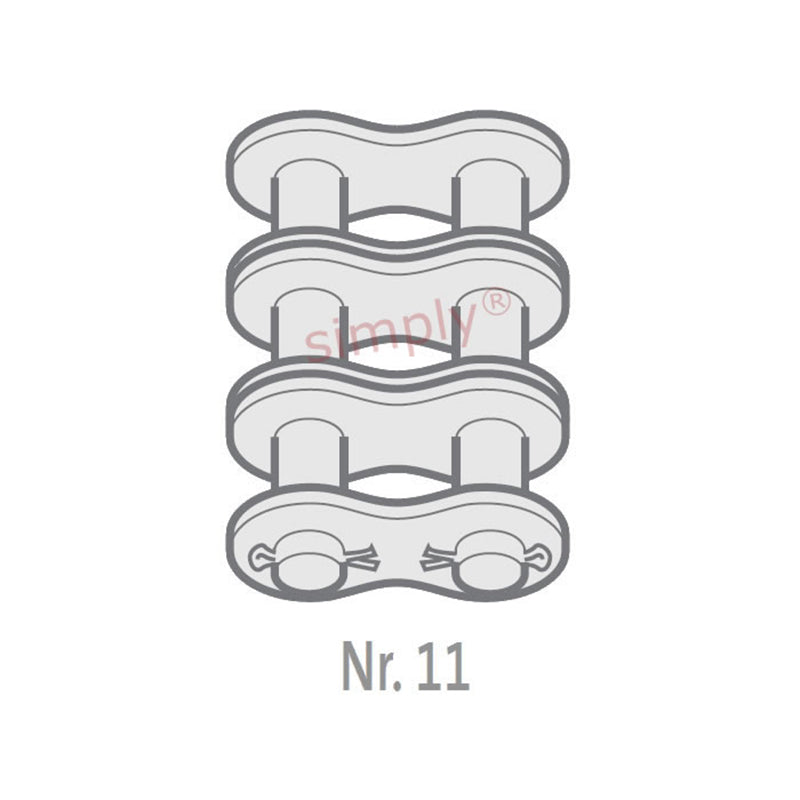

Dunlop COT / No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 40B-3-CL-COT 40B-3-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 63.5mm = 2.5 (2-1/2) inch
Technical
Technical
| Pitch (A) | 2.5 inch |
|---|---|
| Pitch (A) | 63.5mm |
| Inside Width min (B) | 39.3mm |
| Roller Diameter max (C) | 39.37mm |
| Plate Height max (D) | 52.96mm |
| Plate Width Inner max (E) | 8.13mm |
| Plate Width Outer max (F) | 8.13mm |
| Pin Diameter max (G) | 22.89mm |
| Pin Length max (H3) | 222.8mm |
| Connecting Link Extension max (J) | 9.5mm |
| ISO606 Tensile Strength min | 950000 N |
| Weight | 2kg/m |
