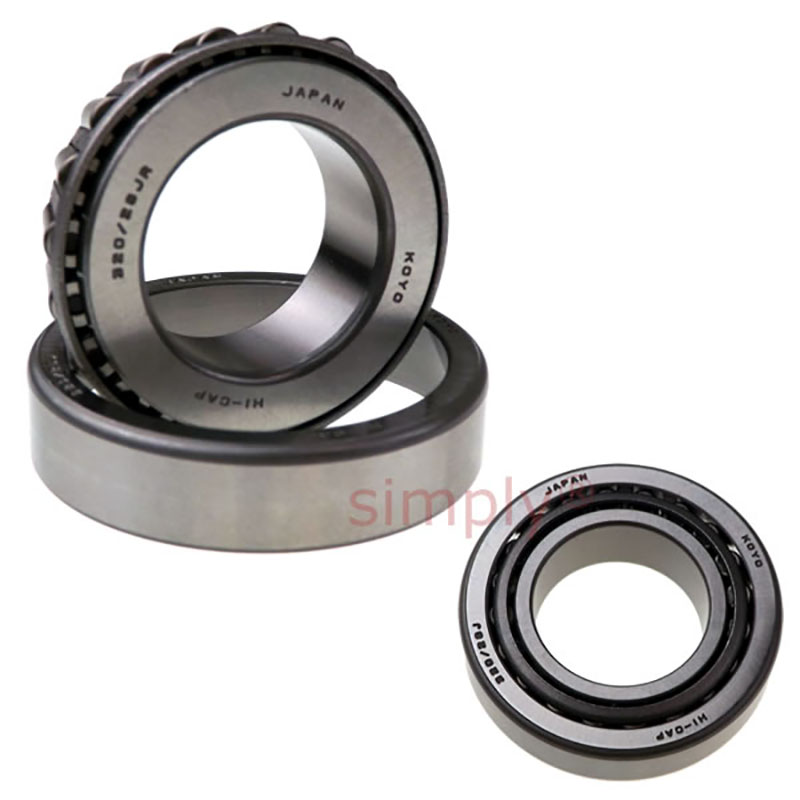

KOYO 320/28JR Narrow Section Steering Head Set Taper Roller Bearing 28x52x16mm
£11.82
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £10.52 each |
| 20+ | £9.93 each |
| 30+ | £9.81 each |
| 40+ | £9.69 each |
| 50+ | £9.58 each |
| 75+ | £9.46 each |
| 100+ | £8.87 each |
| 200+ | £8.75 each |
| 250+ | £8.63 each |
| 500+ | £8.51 each |
| 1000+ | £8.28 each |
In Stock
| d | = | 28mm |
| D | = | 52mm |
| T | = | 16mm |
| B | = | 16mm |
| C | = | 12mm |
| r min | = | 1mm |
| r1 min | = | 1mm |
| Dynamic load Cr | = | 35.2 kN |
| Static load Cor | = | 44 kN |
| Speed in grease | = | 7500 rpm |
| Speed in oil | = | 10000 rpm |
| a | = | 12.7mm |
| da min | = | 33.5mm |
| db max | = | 33mm |
| Da max | = | 46.5mm |
| Da min | = | 45mm |
| Db min | = | 49mm |
| Ca min | = | 3mm |
| Cb min | = | 4mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| e | = | 0.43 |
| Y1 | = | 1.39 |
| Y0 | = | 0.77 |
| Mass | = | 0.15 kg |
