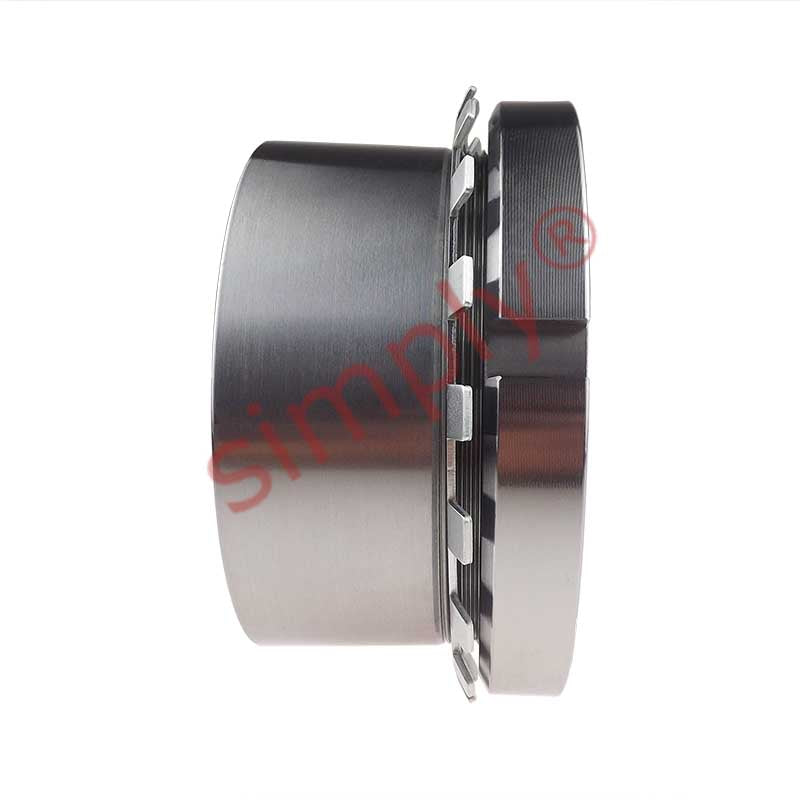

FAG H310 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft

FAG H310 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
€17,95 ex VAT
€17,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €13,55
19+ €12,78
29+ €12,63
39+ €12,48
49+ €12,33
74+ €12,18
99+ €11,42
199+ €11,26
249+ €11,11
499+ €10,96
999+ €10,65
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
FAG - High Quality
Inside Diameter:
45mm
Outside Diameter:
70mm
Width:
42mm
Technical
--- Dimensions
d1 45mm
d 50mm
d3 70mm
B1 42mm
B2 12mm
G Thread 50x1.5mm
Weight 0.29 kg
--- Assembly Parts
Sleeve H310
Nut KM10
Washer MB10
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2210K+taper+self+open>2210K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1310K+taper+self+open>1310K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22210K+taper>22210K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21310K+taper>21310K</a>
