  • 32042Z Budget Shielded Double Row Angular Contact Ball Bearing 20x47x20.6mm

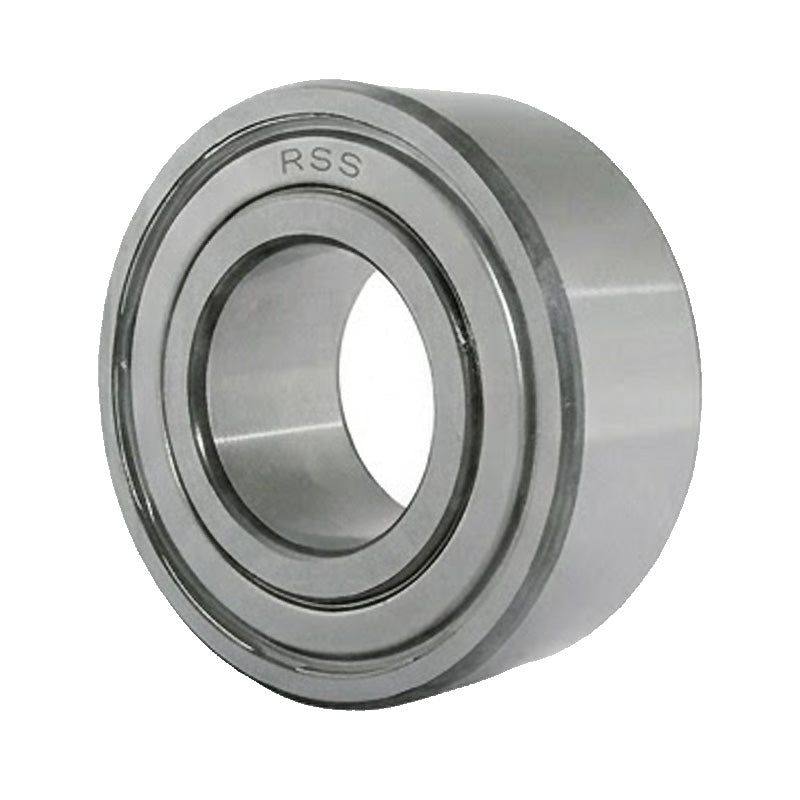

32042Z Budget Shielded Double Row Angular Contact Ball Bearing 20x47x20.6mm
Great rates on shipping on any order regardless of size

32042Z Budget Shielded Double Row Angular Contact Ball Bearing 20x47x20.6mm

0.160000kg

Add to a Save List

Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 20mm
Outside Diameter: 47mm
Width: 20.6mm
Seals / Shields: Metal Shielded
Clearance: * Standard
d
=
20mm
D
=
47mm
B
=
20.6mm
Dynamic load C
=
20 kN
Static load Co
=
12 kN
Fatigue load limit Pu
=
0.51 kN
Reference speed
=
14000 rpm
Weight
=
0.16 kg
d1
=
27.7mm
D1
=
40.9mm
r1r2 min
=
1mm
a
=
28mm
da min
=
25.6mm
da max
=
27.5mm
Da max
=
41.4mm
ra max
=
1mm
