SKU: AXK130170-EU-AS130170-EU

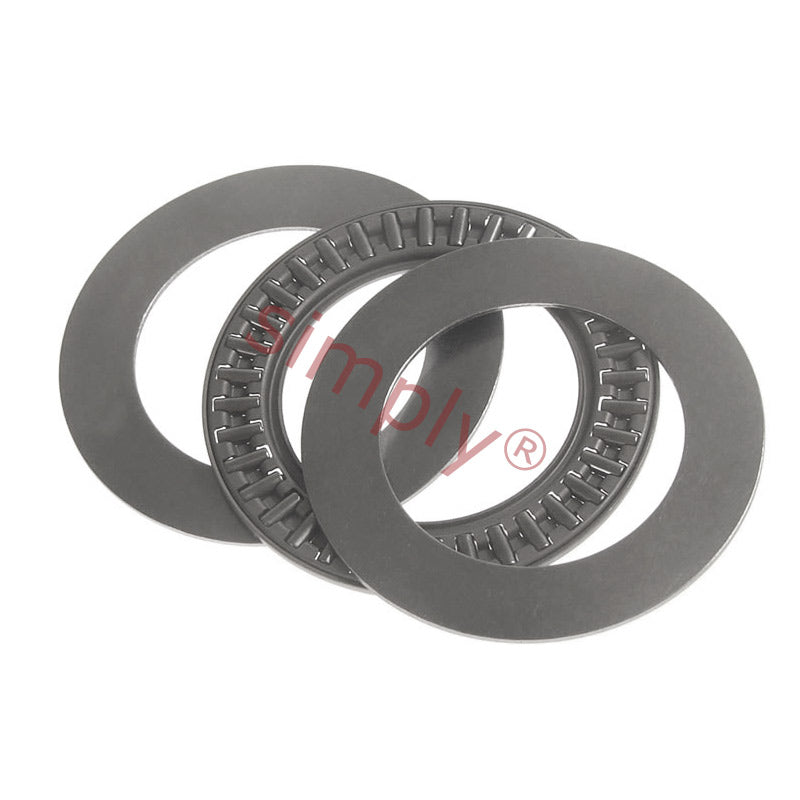

AXK130170/AS130170 Budget Needle Roller Cage with 2 AS Washers 130x170x7mm
AXK130170/AS130170 Budget Needle Roller Cage with 2 AS Washers 130x170x7mm
Regular price
£90.98
ex VAT£109.18inc. VAT
Regular price
Sale price
£90.98
ex VAT£109.18
inc. VAT
In stock
Price Break
10+
£80.97
19+
£76.42
29+
£75.51
39+
£74.60
49+
£73.69
74+
£72.78
99+
£68.24
199+
£67.33
249+
£66.42
499+
£65.51
999+
£63.69
Couldn't load pickup availability
Description
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 170mm
- Width:
- 7mm
Technical
Technical
| d | 130mm |
|---|---|
| D | 170mm |
| Dw | 7mm |
| Ea | 136mm |
| Eb | 167mm |
| Dynamic load C | 112000 N |
| Static load Co | 830000 N |
| Fatigue load limit Pu | 93000 N |
| Speed in grease | 700 rpm |
| Speed in oil | 950 rpm |
| Weight (Assembly) | 205 g |
| d1 | 170mm |
| D | 170mm |
| D1 | 132mm |
| B | 9mm |
| r1r2 min | 1mm |
| Weight LS GS WS | 665 g |
| Weight AS | 65 g |
| Raceway washer | LS130170 |
| Thrust washer | AS130170 |
| Shaft washer | WS81126 |
| Housing washer | GS81126 |
