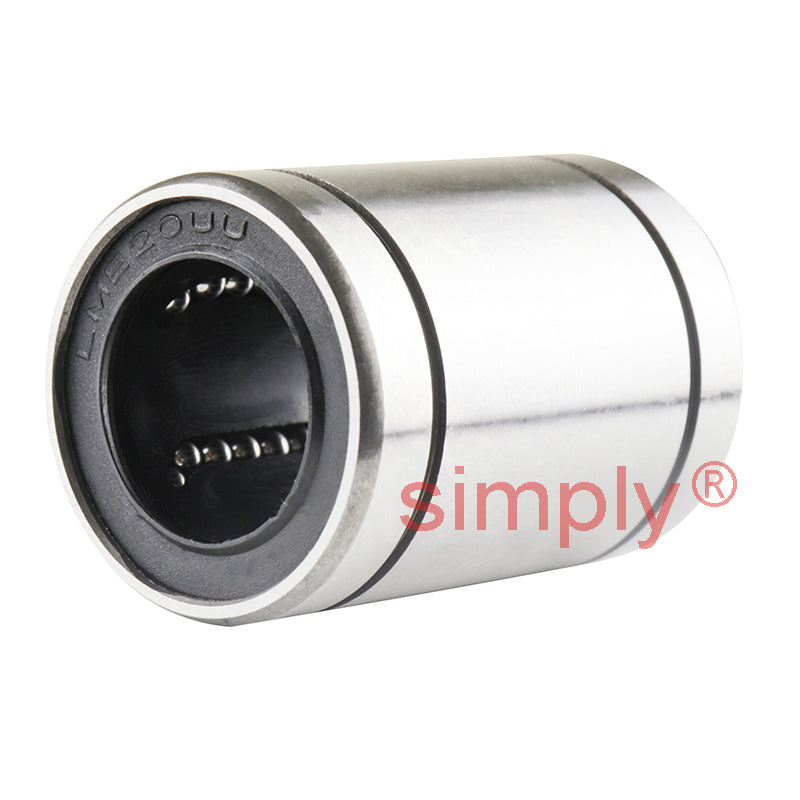

LM20UU Closed Linear Ball Bushing with Rubber Seals 20x32x42mm
Equivalent to: SM20GUU LBD20UU LB20NYDD N20VUU L20UU TB20UU KLM20LL SDM20YUU
£12.69
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £11.30 each |
| 5+ | £10.66 each |
| 10+ | £10.53 each |
| 15+ | £10.41 each |
| 20+ | £10.28 each |
| 30+ | £10.15 each |
| 40+ | £9.52 each |
| 50+ | £9.39 each |
| 60+ | £9.26 each |
| 75+ | £9.14 each |
| 100+ | £8.88 each |
In Stock
| Inside Diameter dr | = | 20mm Tol + 0 to - 7µm |
| Outside Diameter D | = | 32mm Tol + 0 to - 14µm |
| Length L | = | 42mm Tol + 0 to - 300µm |
| W | = | 1.6mm |
| D1 | = | 30.5mm |
| Eccentricity | = | 10µm |
| Dynamic load C | = | 60 kgf |
| Static load Co | = | 105 kgf |
| Weight | = | 87 g |
| B | = | 30.5mm Tol + 0 to - 300µm |
| Number of ball rows | = | 6 |
| Tolerances dr & D | = | Apply to closed type only |
