  • LME12UU Closed Linear Ball Bushing with Rubber Seals 12x22x32mm

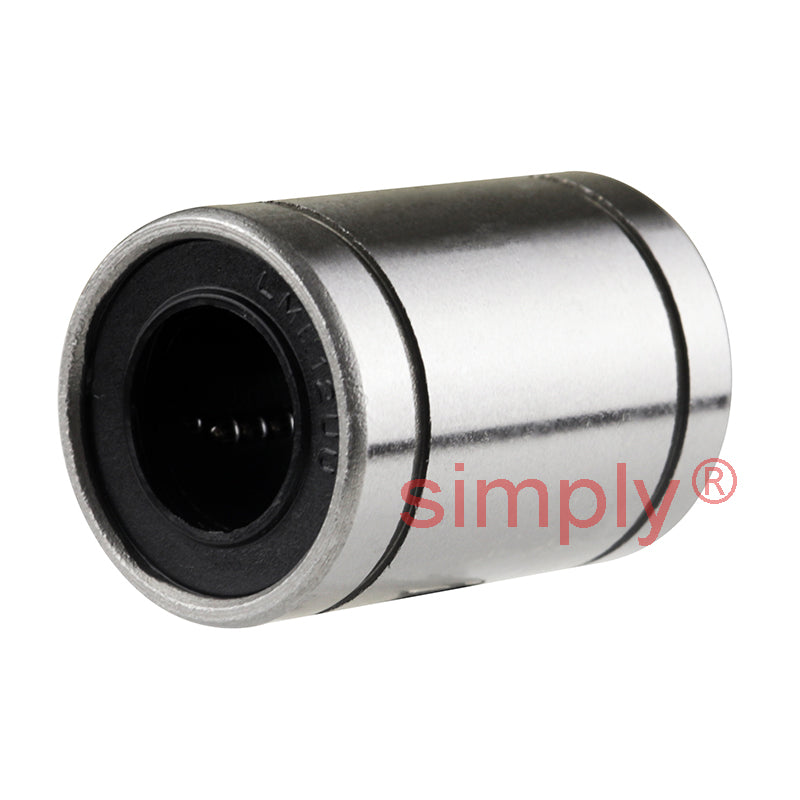

LME12UU Closed Linear Ball Bushing with Rubber Seals 12x22x32mm
Great rates on shipping on any order regardless of size

LME12UU Closed Linear Ball Bushing with Rubber Seals 12x22x32mm

Equivalent to: KB12GUU MAM12WW LBE12UU
0.041000kg

Add to a Save List

LME European Metric Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture.
Closed: LM Closed types - the outer raceway is solid with no relief machined so clearances are preset, choose the adjustable type if you need to control clearances. LME types differ from the LM types only in sizes
Benefits: Low friction, low maintenance, rubber seal limits moisture and dirt ingress, cost effective solution

Brand / Quality: EU Budget - Economy Quality
Inside Diameter: 12mm
Outside Diameter: 22mm
Width: 32mm
Inside Diameter dr
=
12mm Tol +8 to - 0µm
Outside Diameter D
=
22mm Tol + 0 to - 200µm
Length L
=
32mm Tol + 0 to - 200µm
W
=
1.3mm
D1
=
21mm
B
=
22.9mm
Eccentricity
=
12µm
Dynamic load C
=
60 kgf
Static load Co
=
51 kgf
Weight
=
41 g
Number of ball rows
=
4
Tolerances dr & D
=
Apply to closed type only
Schematic diagram for LM series linear ball bushings
