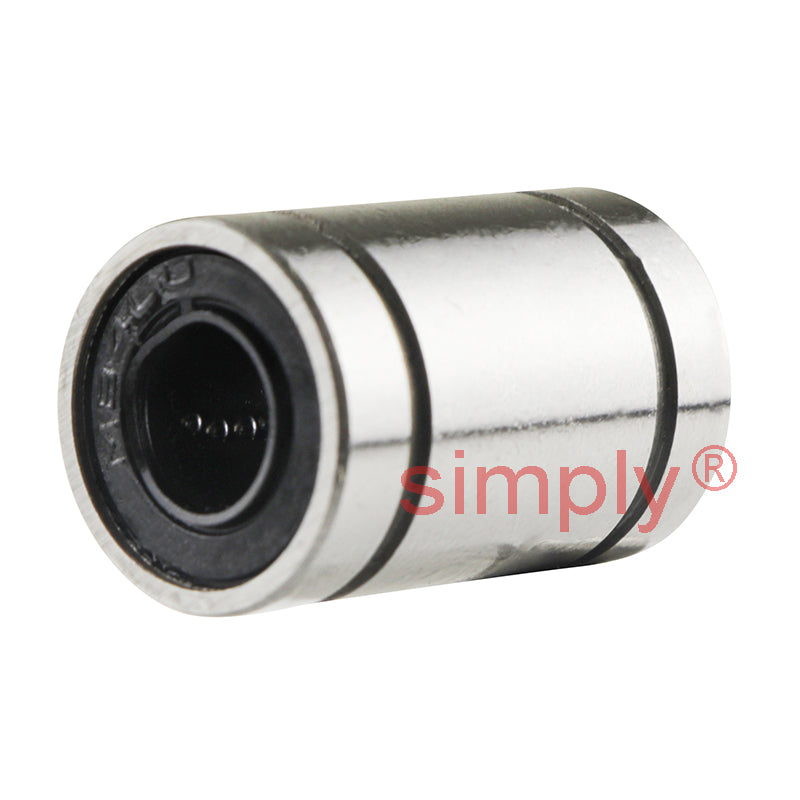

LMB4UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.25x0.5x0.75 inch
£9.80
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £8.72 each |
| 5+ | £8.23 each |
| 10+ | £8.13 each |
| 15+ | £8.04 each |
| 20+ | £7.94 each |
| 30+ | £7.84 each |
| 40+ | £7.35 each |
| 50+ | £7.25 each |
| 60+ | £7.15 each |
| 75+ | £7.06 each |
| 100+ | £6.86 each |
In Stock
| Inside Diameter dr | = | 0.25 inch Tol - 0 to + 6µm |
| Outside Diameter D | = | 0.5 inch Tol - 0 to + 11µm |
| Length L | = | 0.75 inch Tol - 0 to + 200µm |
| W | = | 0.039 inch |
| D1 | = | 0.039 inch |
| B | = | 0.511 inch |
| Eccentricity | = | 8 to 12µm |
| Dynamic load C | = | 21 kgf |
| Static load Co | = | 27 kgf |
| Weight | = | 10 g |
| Number of ball rows | = | 4 |
| Tolerances dr & D | = | Apply to closed type only |
