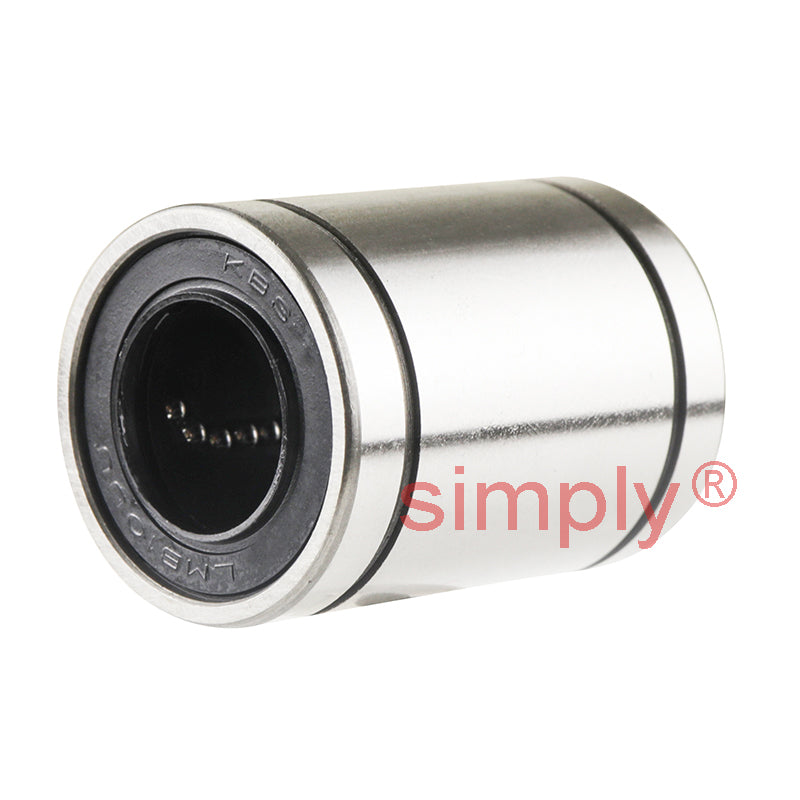

LMB10UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.625x1.125x1.5 inch
£12.65
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £11.26 each |
| 5+ | £10.63 each |
| 10+ | £10.50 each |
| 15+ | £10.37 each |
| 20+ | £10.25 each |
| 30+ | £10.12 each |
| 40+ | £9.49 each |
| 50+ | £9.36 each |
| 60+ | £9.23 each |
| 75+ | £9.11 each |
| 100+ | £8.86 each |
In Stock
| Inside Diameter dr | = | 0.625 inch Tol - 0 to + 6µm |
| Outside Diameter D | = | 1.125 inch Tol - 0 to + 13µm |
| Length L | = | 1.5 inch Tol - 0 to + 200µm |
| W | = | 0.0559 inch |
| D1 | = | 0.0559 inch |
| B | = | 1.1039 inch |
| Eccentricity | = | 8 to 12µm |
| Dynamic load C | = | 79 kgf |
| Static load Co | = | 120 kgf |
| Weight | = | 69 g |
| Number of ball rows | = | 4 |
| Tolerances dr & D | = | Apply to closed type only |
