SKU: SF1.7/16-RHP

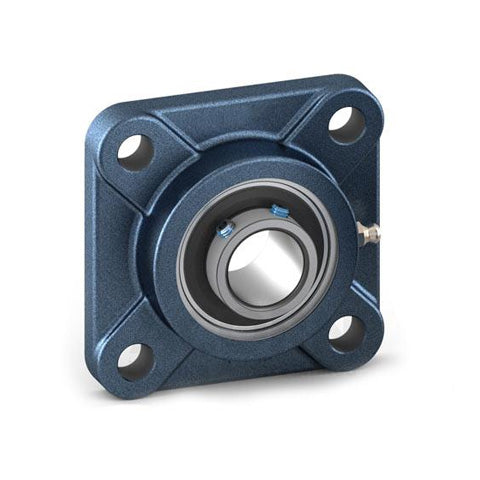

RHP SF1-7/16 Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Grub Screw Full Width Insert
RHP SF1-7/16 Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Grub Screw Full Width Insert
Regular price
£56.20
ex VAT£67.44inc. VAT
Regular price
Sale price
£56.20
ex VAT£67.44
inc. VAT
In stock
Price Break
10+
£50.02
20+
£47.21
30+
£46.65
40+
£46.08
50+
£45.52
75+
£44.96
100+
£42.15
200+
£41.59
250+
£41.03
500+
£40.46
1000+
£39.34
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 91.999mm = 3.622 inch
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 4.626 inch |
| H | 3.752 inch |
| J | 3.622 inch |
| G | 0.5 inch |
| A | 1.236 |
| A1 | 1.827 inch |
| A4 | 0.5 inch |
| B | 1.688 |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static Load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-7/16G+insonly">1035-1-7/16G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
