SKU: SLC30A-RHP

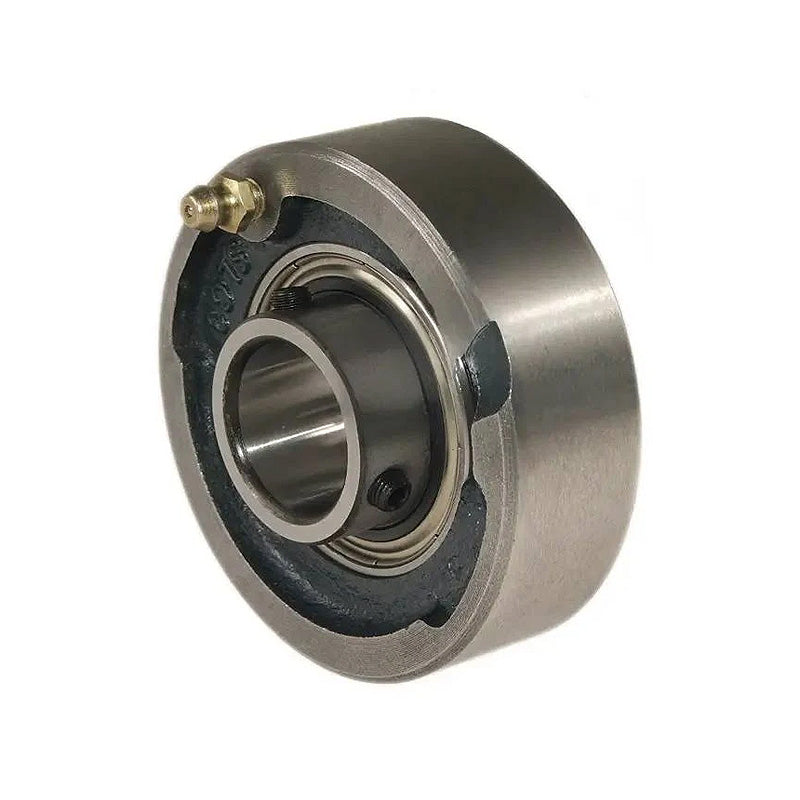

RHP SLC30A Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter

RHP SLC30A Cast Iron Cartridge Unit with 30mm Bore Insert 88.93mm Outside Diameter
Regular price €56,95 ex VAT
Regular price Sale price €56,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €42,88
20+ €40,47
30+ €39,99
40+ €39,51
50+ €39,03
75+ €38,55
100+ €36,14
200+ €35,65
250+ €35,17
500+ €34,69
1000+ €33,73
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 30mm
L 88.925mm
A 27.78mm
A1 36.12mm
A2 40.56mm
A3 43.99mm
B 38.1mm
B1 31.21mm
B2 35.68mm
B3 48.42mm
s 15.93mm
s1 9.04mm
s2 18.32mm
d1 40mm
d2 44.45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
