SKU: MSC1.3/4-RHP

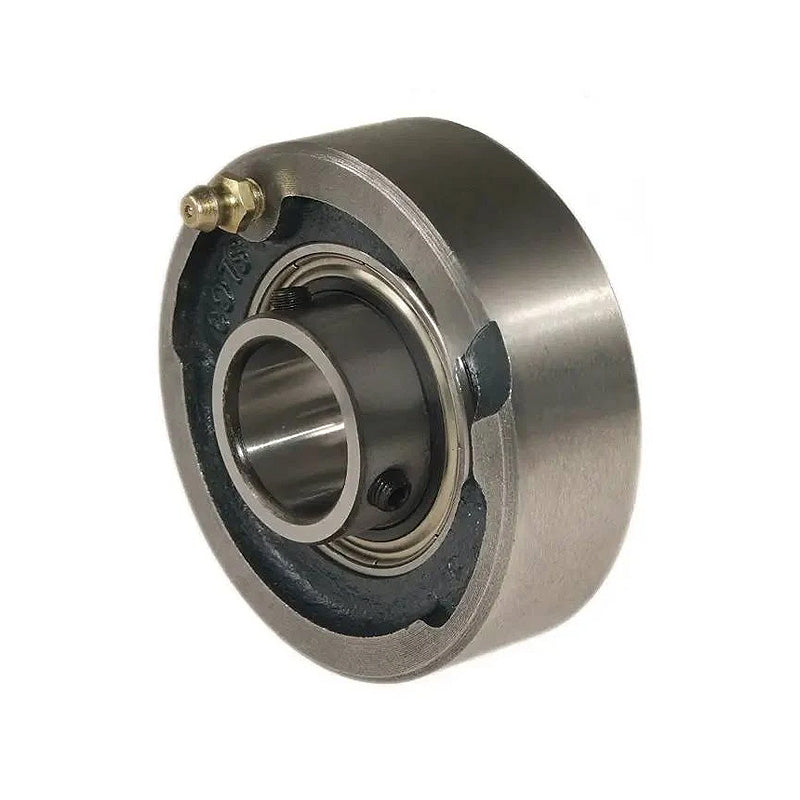

RHP MSC1-3/4 Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 98.45mm Outside Diameter
RHP MSC1-3/4 Cast Iron Cartridge Unit with 1-3/4 inch Bore Insert 98.45mm Outside Diameter
Regular price
£124.51
ex VAT£149.41inc. VAT
Regular price
Sale price
£124.51
ex VAT£149.41
inc. VAT
In stock
Price Break
10+
£110.81
20+
£104.59
30+
£103.34
40+
£102.10
50+
£100.85
75+
£99.61
100+
£93.38
200+
£92.14
250+
£90.89
500+
£89.65
1000+
£87.16
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 98.45mm
- Style:
- MSC
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 3.876 inch |
| A | 1.219 inch |
| A1 | 1.609 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rex max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/4G+insonly">1035-1-3/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
