Average Rating (4 Reviews)

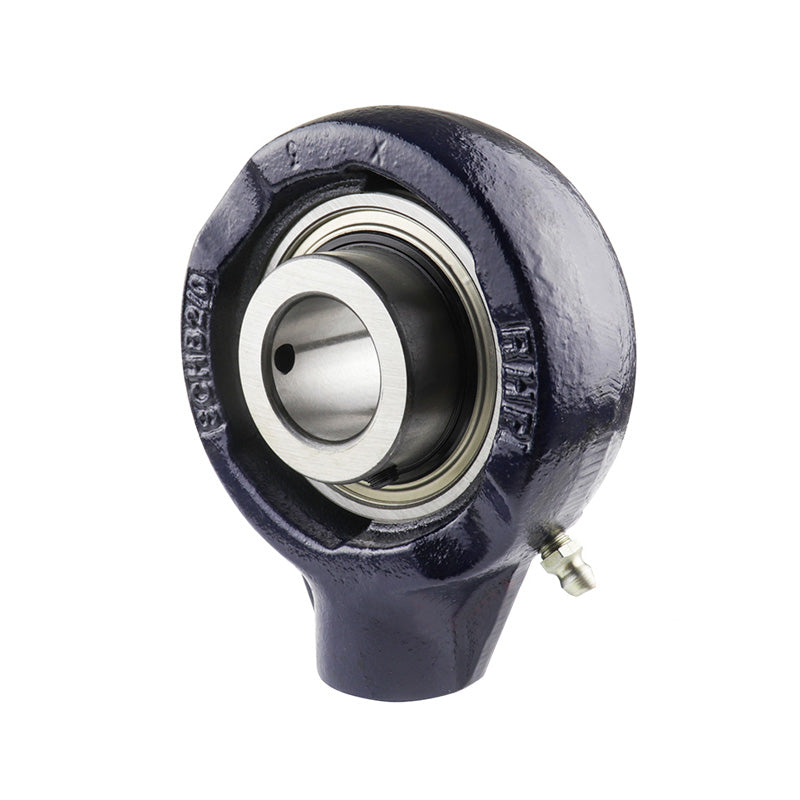

RHP SCHB20 BSP Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
£55.46
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £49.36 each |
| 20+ | £46.59 each |
| 30+ | £46.03 each |
| 40+ | £45.48 each |
| 50+ | £44.92 each |
| 75+ | £44.37 each |
| 100+ | £41.60 each |
| 200+ | £41.04 each |
| 250+ | £40.49 each |
| 500+ | £39.93 each |
| 1000+ | £38.82 each |
In Stock
| Bore | = | 20mm |
| G1 | = | 19mm |
| L | = | 67mm |
| H | = | 91.6mm |
| H1 | = | 57.2mm |
| Threads | = | 1/2 BSP |
| A | = | 34mm |
| A1 | = | 18.26mm |
| B | = | 30.96mm |
| s | = | 12.75mm |
| d1 | = | 28.5mm |
| Dynamic load Cr | = | 12800 N |
| Static load Cor | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.8 kg |
| Insert | = | 1020-20G Click Here |
| Casting group | = | 0 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
