SKU: SCHB3-RHP

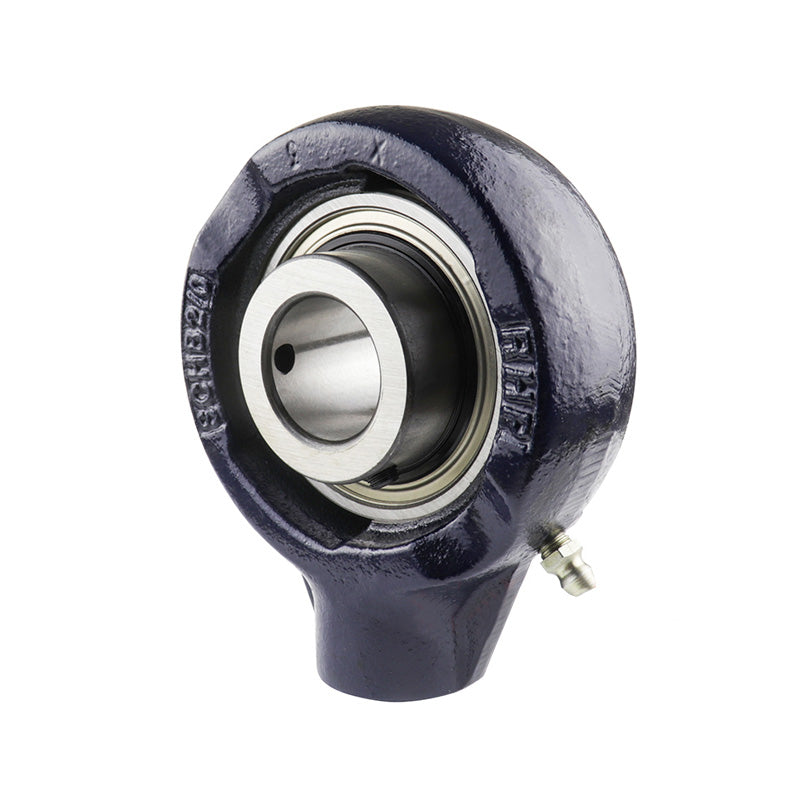

RHP SCHB3 BSP Thread Cast Iron Hanger Bearing Unit and 3 inch Bore Insert 174.5mm Outside Diameter
RHP SCHB3 BSP Thread Cast Iron Hanger Bearing Unit and 3 inch Bore Insert 174.5mm Outside Diameter
Regular price
€342,95
ex VAT
Regular price
Sale price
€342,95
ex VAT
In stock
Price Break
10+
€261,01
20+
€246,34
30+
€243,41
40+
€240,48
50+
€237,54
75+
€234,61
100+
€219,95
200+
€217,02
250+
€214,08
500+
€211,15
1000+
€205,29
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 174.5mm
- Style:
- SCHB
Technical
Technical
| Bore | 3 inch |
|---|---|
| G1 | 1.26 inch |
| L | 6.87 inch |
| H | 8.327 inch |
| H1 | 4.874 inch |
| Threads | 1-1/2 BSP |
| A | 2.815 inch |
| A1 | 1.626 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 inch |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 8.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
