SKU: 1120-3/4CG-RHP

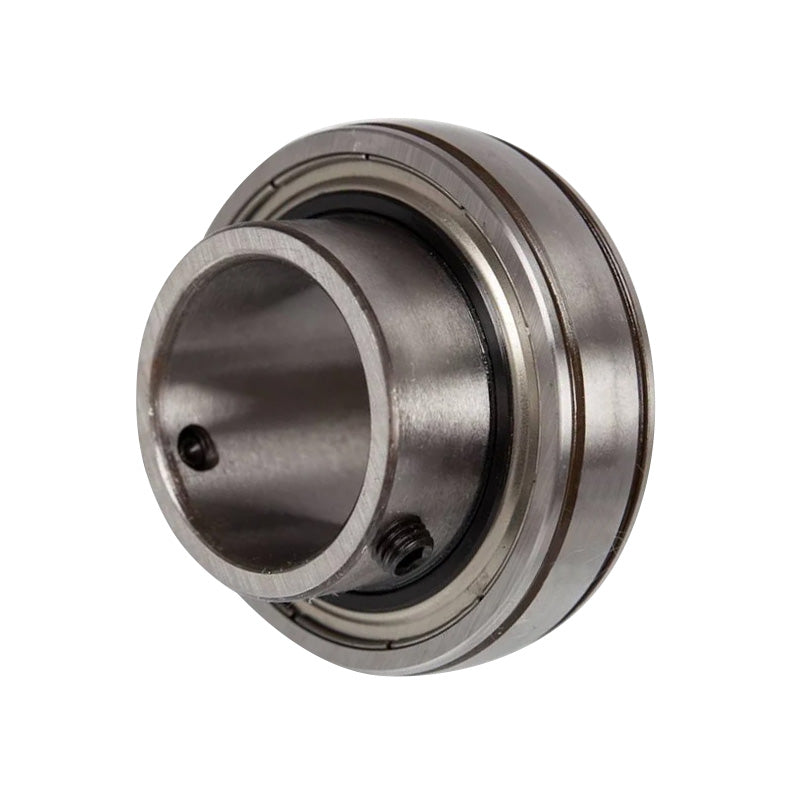

RHP 1120-3/4CG Full Width Snap Ring Grub Screw Bearing Insert 3/4 inch Bore 47mm Outside Diameter
RHP 1120-3/4CG Full Width Snap Ring Grub Screw Bearing Insert 3/4 inch Bore 47mm Outside Diameter
Regular price
£23.44
ex VAT£28.13inc. VAT
Regular price
Sale price
£23.44
ex VAT£28.13
inc. VAT
In stock
Price Break
10+
£20.86
20+
£19.69
30+
£19.45
40+
£19.22
50+
£18.98
75+
£18.75
100+
£17.58
200+
£17.34
250+
£17.11
500+
£16.87
1000+
£16.41
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- 1120
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| D | 1.8504mm |
| D1 | 2.074mm |
| C | 0.625mm |
| C1 | 0.94mm |
| C2 | 0.164mm |
| B | 1.219mm |
| s | 0.502mm |
| d1 | 1.122mm |
| f | 0.44mm |
| M | 0.211mm |
| r | 0.039mm |
| r1 | 0.02mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.23 kg |
