SKU: 1140-1.1/2CG-RHP

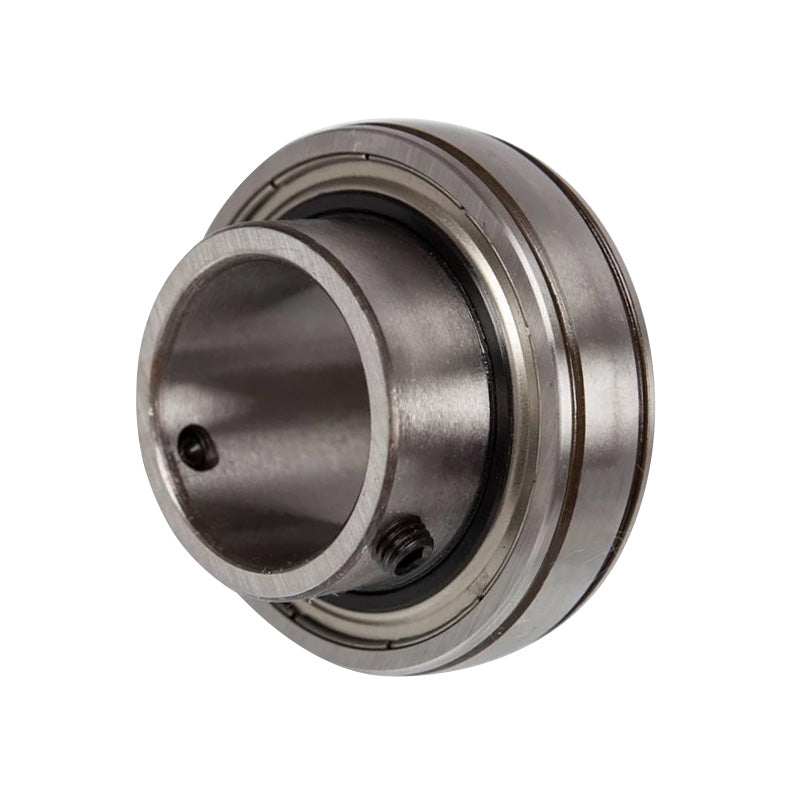

RHP 1140-1-1/2CG Full Width Snap Ring Grub Screw Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
RHP 1140-1-1/2CG Full Width Snap Ring Grub Screw Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
Regular price
£46.08
ex VAT£55.30inc. VAT
Regular price
Sale price
£46.08
ex VAT£55.30
inc. VAT
In stock
Price Break
10+
£41.01
20+
£38.70
30+
£38.24
40+
£37.78
50+
£37.32
75+
£36.86
100+
£34.56
200+
£34.10
250+
£33.64
500+
£33.18
1000+
£32.25
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- 1140
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| D | 3.1496mm |
| D1 | 3.406mm |
| C | 1.094mm |
| C1 | 0.125mm |
| C2 | 0.245mm |
| B | 1.938mm |
| s | 0.752mm |
| d1 | 2.075mm |
| f | 0.67mm |
| M | 0.313mm |
| r | 0.039mm |
| r1 | 0.039mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 0.91 kg |
