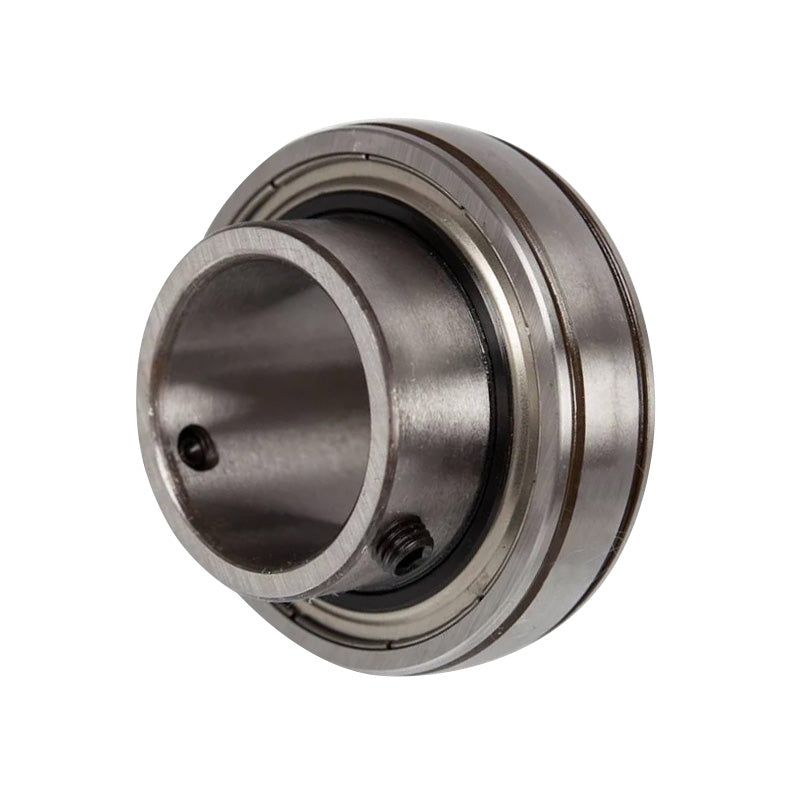

RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality: RHP - High Quality Inside Diameter: 41.28mm = 1.625 (1-5/8) inch Outside Diameter: 85mm Style: 1145 Insert Type Parallel Outer Diameter Full Width & Grub Screws Features 2 x Snap Ring Grooves & 1 x Snap Ring
Bore
=
1-5/8 inch
D
=
3.3465mm
D1
=
3.603mm
C
=
1.094mm
C1
=
0.125mm
C2
=
0.257mm
B
=
1.938mm
s
=
0.752mm
d1
=
2.256mm
f
=
0.67mm
M
=
0.313mm
r
=
0.039mm
r1
=
0.039mm
Dynamic load Cr
=
32500 N
Static load Cor
=
20500 N
Rec max speed
=
3700 rpm
Weight
=
1.05 kg
SCH_GC1100_RHP
Write a review
There are currently no reviews - but you could help other users and write one.
Write a Product Review
RHP 1145-1-5/8CG Full Width Snap Ring Grub Screw Bearing Insert 1-5/8 inch Bore 85mm Outside Diameter
