SKU: 1145-1.11/16CG-RHP

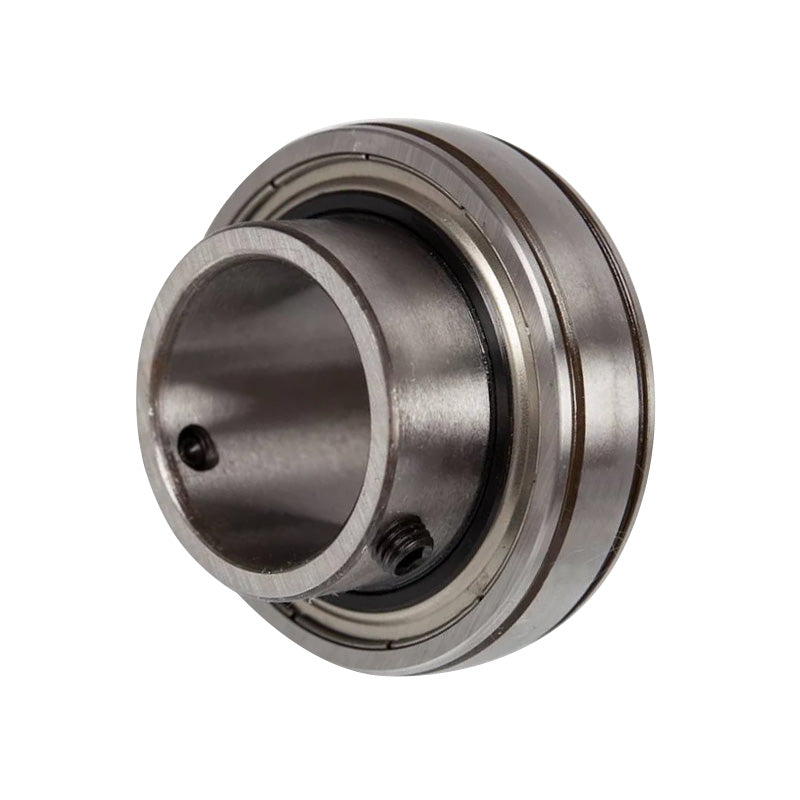

RHP 1145-1-11/16CG Full Width Snap Ring Grub Screw Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter
RHP 1145-1-11/16CG Full Width Snap Ring Grub Screw Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter
Regular price
£51.45
ex VAT£61.74inc. VAT
Regular price
Sale price
£51.45
ex VAT£61.74
inc. VAT
In stock
Price Break
10+
£45.79
20+
£43.22
30+
£42.70
40+
£42.19
50+
£41.67
75+
£41.16
100+
£38.59
200+
£38.07
250+
£37.56
500+
£37.04
1000+
£36.01
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Style:
- 1145
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| D | 3.3465mm |
| D1 | 3.603mm |
| C | 1.094mm |
| C1 | 0.125mm |
| C2 | 0.257mm |
| B | 1.938mm |
| s | 0.752mm |
| d1 | 2.256mm |
| f | 0.67mm |
| M | 0.313mm |
| r | 0.039mm |
| r1 | 0.039mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 1.05 kg |
