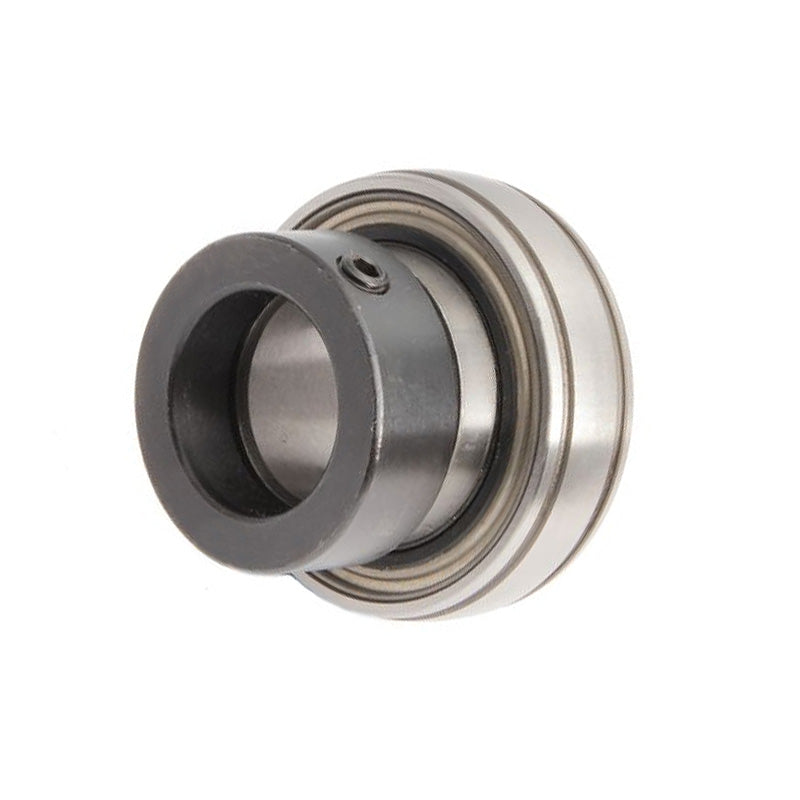

RHP T1035-1-7/16DECG Triple Seal Eccentric Collar Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter

Page Feedback?

SKU: T1035-1.7/16DECG-RHP

£54.61 ex VAT

Price Breaks

Quantity	Prices
10+	£48.60 each
20+	£45.87 each
30+	£45.33 each
40+	£44.78 each
50+	£44.23 each
75+	£43.69 each
100+	£40.96 each

10+ £48.60 each
20+ £45.87 each
30+ £45.33 eachClick Here…

In Stock

Add to a Save List

RHP T1000DECG Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a triple seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There is an eccentric collar and grub screw to allow easy installation and placement prior of the bearing prior to tightened against to the shaft.
Benefits: Cost effective solution, re-lubricatable, eccentric collar fixing, Triple sealed

Brand / Quality: RHP - High Quality
Inside Diameter: 36.51mm = 1.437 (1-7/16) inch
Outside Diameter: 72mm
Style: T1035
Insert Type Triple Sealed
Style Eccentric Collar
Service Re-Lubricateable

Bore	=	1-7/16 inch
D	=	2.8346 inch
C	=	0.748 inch
B3	=	2.015 inch
s2	=	0.744 inch
d2	=	2.188 inch
r	=	0.039 inch
Dynamic load Cr	=	25700 N
Static load Cor	=	15300 N
Rec max speed	=	750 rpm
Weight	=	0.7 kg
