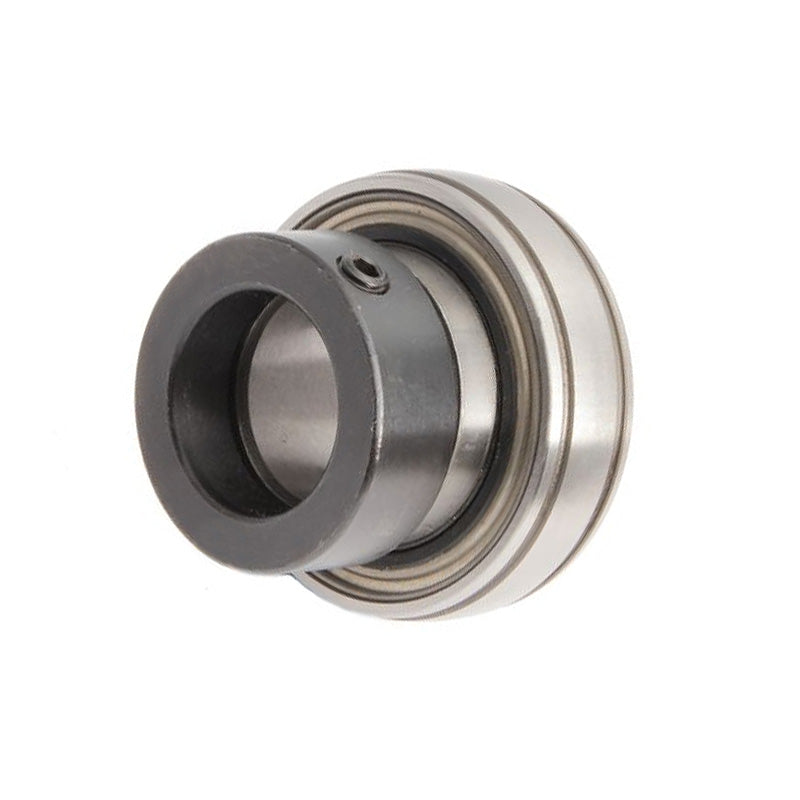

RHP T1080-80DECG Triple Seal Eccentric Collar Bearing Insert 80mm Bore 140mm Out Simply Bearings Ltd

RHP T1000DECG Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a triple seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There is an eccentric collar and grub screw to allow easy installation and placement prior of the bearing prior to tightened against to the shaft.
Benefits: Cost effective solution, re-lubricatable, eccentric collar fixing, Triple sealed

Bore	=	80mm
D	=	140mm
C	=	30mm
B3	=	99.95mm
s2	=	40.53mm
d2	=	111.12mm
r	=	2mm
Dynamic load Cr	=	55500 N
Static load Cor	=	53000 N
Rec max speed	=	350 rpm
Weight	=	3.54 kg
